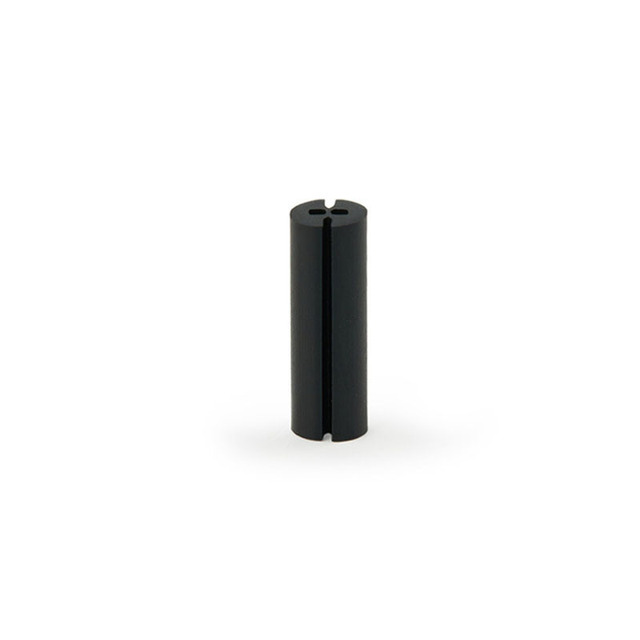

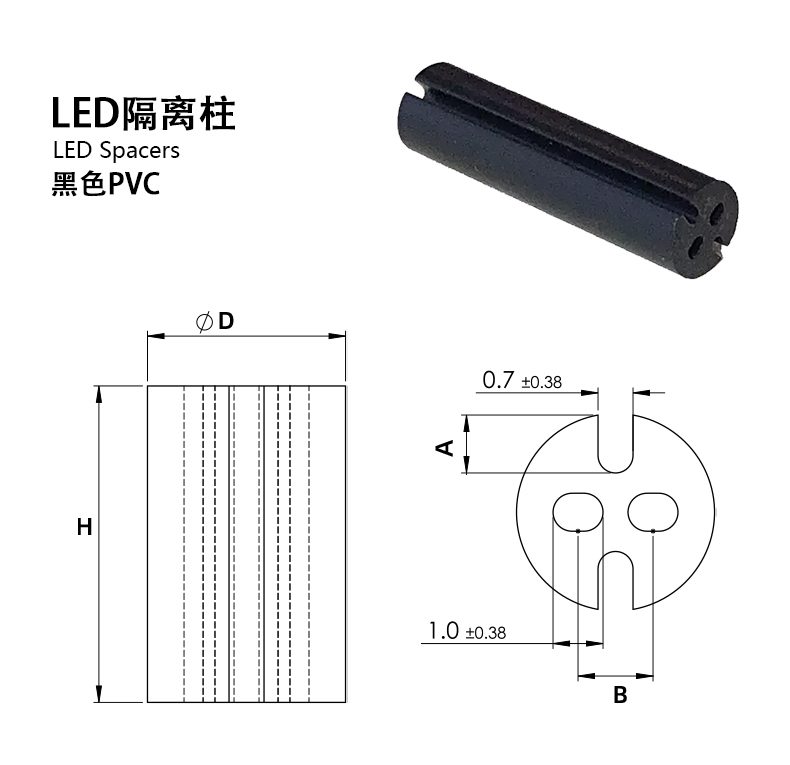

黑色LED隔离柱 LEDS1
| 编号 | 类型 | 匹配 LED | 尺寸(mm) | 材料 | ||||
| “H” ±.020 | “D” ±.020 | “A” | “B”参考 | |||||
| GSLEDS1-3-26 | 1 | T-1 (3mm) | 4.8 | 4 | 1.2 | 1.5 | PVC | |
| GSLEDS1-4-26 | 1 | T-1 (3mm) | 6.4 | 4 | 1.2 | 1.5 | PVC | |
| GSLEDS1-6-26 | 1 | T-1 (3mm) | 9.5 | 4 | 1.2 | 1.5 | PVC | |
| GSLEDS1-8-26 | 1 | T-1 (3mm) | 12.7 | 4 | 1.2 | 1.5 | PVC | |
| GSLEDS1-10-26 | 1 | T-1 (3mm) | 15.9 | 4 | 1.2 | 1.5 | PVC | |
| GSLEDS1-12-26 | 1 | T-1 (3mm) | 19.1 | 4 | 1.2 | 1.5 | PVC | |
| GSLEDS1-14-26 | 1 | T-1 (3mm) | 22.2 | 4 | 1.2 | 1.5 | PVC | |
| GSLEDS1-5M-26 | 1 | T-1 (3mm) | 5.0 | 4 | 1.2 | 1.5 | PVC | |
| GSLEDS1-6M-26 | 1 | T-1 (3mm) | 6.0 | 4 | 1.2 | 1.5 | PVC | |
| GSLEDS1-7M-26 | 1 | T-1 (3mm) | 7.0 | 4 | 1.2 | 1.5 | PVC | |
| GSLEDS1-8.5M-26 | 1 | T-1 (3mm) | 8.5 | 4 | 1.2 | 1.5 | PVC | |
| GSLEDS1-9M-26 | 1 | T-1 (3mm) | 9.0 | 4 | 1.2 | 1.5 | PVC | |
| GSLEDS1-10M-26 | 1 | T-1 (3mm) | 10.0 | 4 | 1.2 | 1.5 | PVC | |
| GSLEDS1-12M-26 | 1 | T-1 (3mm) | 12.0 | 4 | 1.2 | 1.5 | PVC | |
| GSLEDS1-18M-26 | 1 | T-1 (3mm) | 18.0 | 4 | 1.2 | 1.5 | PVC | |
| GSLEDS1-20M-26 | 1 | T-1 (3mm) | 20.0 | 4 | 1.2 | 1.5 | PVC | |
| GSLEDS1-26M-26 | 1 | T-1 (3mm) | 26.0 | 4 | 1.2 | 1.5 | PVC | |
| GSLEDS1-26.5M-26 | 1 | T-1 (3mm) | 26.5 | 4 | 1.2 | 1.5 | PVC | |
| GSLEDS1-29M-26 | 1 | T-1 (3mm) | 29.0 | 4 | 1.2 | 1.5 | PVC | |
| GSLEDS1-30M-26 | 1 | T-1 (3mm) | 30.0 | 4 | 1.2 | 1.5 | PVC | |
