不锈钢卡箍(抱箍)

不锈钢卡箍

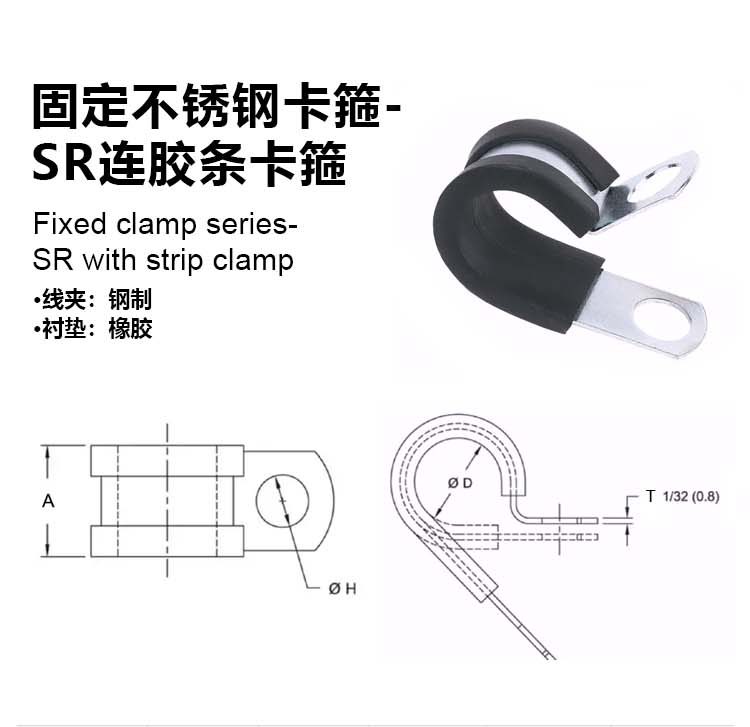

连胶条卡箍

线夹：不锈钢

衬垫：橡胶

不锈钢卡箍(抱箍)

不锈钢卡箍(抱箍)

编号	捆扎直径D	带宽A	T 钢片厚度	带胶总厚度	螺孔直径H
C-120406	4mm	12mm	0.6mm	4mm	6.4mm
C-120606	6mm	12mm	0.6mm	4mm	6.4mm
C-120806	8mm	12mm	0.6mm	4mm	6.4mm
C-121006	10mm	12mm	0.6mm	4mm	6.4mm
C-121206	12mm	12mm	0.6mm	4mm	6.4mm
C-121406	14mm	12mm	0.8mm	4mm	6.4mm
C-121606	16mm	12mm	0.8mm	4mm	6.4mm
C-121806	18mm	12mm	0.8mm	4mm	6.4mm
C-122006	20mm	12mm	0.8mm	4mm	6.4mm
编号	捆扎直径D	带宽A	T 钢片厚度	带胶总厚度	螺孔直径H
C-150606	6mm	15mm	0.6mm	4mm	6.4mm
C-150806	8mm	15mm	0.6mm	4mm	6.4mm
C-151006	10mm	15mm	0.6mm	4mm	6.4mm
C-151206	12mm	15mm	0.6mm	4mm	6.4mm
C-151406	14mm	15mm	0.6mm	4mm	6.4mm
C-151606	16mm	15mm	0.6mm	4mm	6.4mm
C-151806	18mm	15mm	0.6mm	4mm	6.4mm
C-152006	20mm	15mm	0.6mm	4mm	6.4mm
编号	捆扎直径D	带宽A	T 钢片厚度	带胶总厚度	螺孔直径H
C-201408	14mm	20mm	0.8mm	4mm	6.4mm
C-201608	16mm	20mm	0.8mm	4mm	6.4mm
C-201808	18mm	20mm	0.8mm	4mm	6.4mm
C-202008	20mm	20mm	0.8mm	4mm	6.4mm
