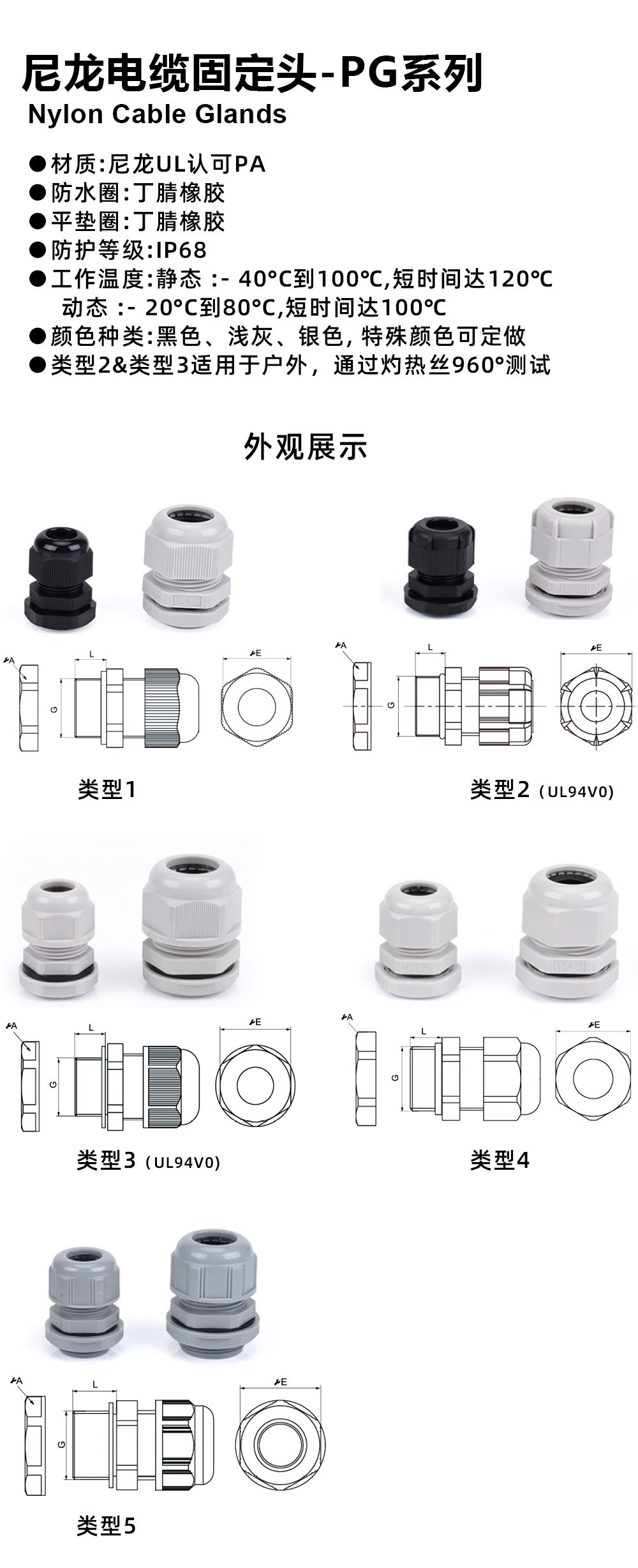

PG系列尼龙电缆固定接头
| 编号 | 类型 | 螺纹规格 | 电缆规格 | G | 标准版L | 加长版L | A & E |
| GN-PG7-501 | 类型1 | PG7 | 3-5 | 12.5 | 9 | 15 | 19/16 |
| GN-PG7-655 | 类型5 | PG7 | 3-6.5 | 12.5 | 11 | / | 19/15 |
| GN-PG7-602 | 类型2 | PG7 | 4-6 | 12.5 | 9 | 15 | 19/16 |
| GN-PG7-651 | 类型1 | PG7 | 4-6.5 | 12.5 | 9 | 15 | 19/16 |
| GN-PG7-654 | 类型4 | PG7 | 4-6.5 | 12.5 | 9 | / | 19/16 |
| GN-PG7-683 | 类型3 | PG7 | 4-6.8 | 12.5 | 8 | 15 | 19/16 |
| GN-PG9-701 | 类型1 | PG9 | 4-7 | 15.2 | 9 | 15 | 22/19 |
| GN-PG9-805 | 类型5 | PG9 | 4-8 | 15.2 | 11 | / | 22/19 |
| GN-PG9-803 | 类型3 | PG9 | 4.5-8 | 15.2 | 9 | 15 | 22/19 |
| GN-PG9-851 | 类型1 | PG9 | 4.5-8.5 | 15.2 | 9 | 15 | 22/19 |
| GN-PG9-854 | 类型4 | PG9 | 4.5-8.5 | 15.2 | 9 | / | 22/19 |
| GN-PG9-852 | 类型2 | PG9 | 4.5-8.5 | 15.2 | 9 | 15 | 22/19 |
| GN-PG11-851 | 类型1 | PG11 | 4-8.5 | 18.6 | 9 | 15 | 24/22 |
| GN-PG11-1001 | 类型1 | PG11 | 5-10 | 18.6 | 9 | 15 | 24/22 |
| GN-PG11-1002 | 类型2 | PG11 | 5-10 | 18.6 | 9 | 15 | 24/22 |
| GN-PG11-1004 | 类型4 | PG11 | 5-10 | 18.6 | 9 | / | 24/22 |
| GN-PG11-1005 | 类型5 | PG11 | 5-10 | 18.6 | 12 | / | 24/22 |
| GN-PG11-1003 | 类型3 | PG11 | 6-10 | 18.6 | 9 | 15 | 24/22 |
| 编号 | 类型 | 螺纹规格 | 电缆规格 | G | 标准版L | 加长版L | A & E |
| GN-PG13.5-751 | 类型1 | PG13.5 | 4-7.5 | 20.4 | 10 | 15 | 26/24 |
| GN-PG13.5-901 | 类型1 | PG13.5 | 5-9 | 20.4 | 10 | 15 | 26/24 |
| GN-PG13.5-1101 | 类型1 | PG13.5 | 6-11 | 20.4 | 10 | 15 | 26/24 |
| GN-PG13.5-1102 | 类型2 | PG13.5 | 6-11 | 20.4 | 10 | 15 | 27/24 |
| GN-PG13.5-1104 | 类型4 | PG13.5 | 6-11 | 20.4 | 10 | / | 27/24 |
| GN-PG13.5-1205 | 类型5 | PG13.5 | 6-12 | 20.4 | 13 | / | 26/24 |
| GN-PG13.5-1203 | 类型3 | PG13.5 | 7-12 | 20.4 | 10 | 15 | 27/24 |
| GN-PG16-1201 | 类型1 | PG16 | 7-12 | 22.5 | 10 | 15 | 30/27 |
| GN-PG16-1301 | 类型1 | PG16 | 8-13 | 22.5 | 10 | 15 | 30/27 |
| GN-PG16-1304 | 类型4 | PG16 | 8-13 | 22.5 | 10 | / | 30/27 |
| GN-PG16-1302 | 类型2 | PG16 | 8-13 | 22.5 | 10 | 15 | 30/27 |
| GN-PG16-1305 | 类型5 | PG16 | 8-13 | 22.5 | 13 | / | 30/27 |
| GN-PG16-1403 | 类型3 | PG16 | 8.5-14 | 22.5 | 10 | 15 | 30/27 |
| GN-PG19-1501 | 类型1 | PG19 | 12-15 | 24 | 10 | / | 30/27 |
| GN-PG21-1601 | 类型1 | PG21 | 10-16 | 28.3 | 12 | 15 | 36/33 |
| GN-PG21-1803 | 类型3 | PG21 | 13-18 | 28.3 | 10 | 15 | 36/33 |
| GN-PG21-1801 | 类型1 | PG21 | 13-18 | 28.3 | 12 | 15 | 36/33 |
| GN-PG21-1804 | 类型4 | PG21 | 13-18 | 28.3 | 12 | / | 36/33 |
| GN-PG21-1802 | 类型2 | PG21 | 13-18 | 28.3 | 12 | 15 | 36/33 |
| GN-PG21-1805 | 类型5 | PG21 | 13-18 | 28.3 | 16 | / | 36/33 |
| GN-PG25-2101 | 类型1 | PG25 | 16-21 | 30 | 12 | 15 | 37/35 |
| GN-PG25-2102 | 类型2 | PG25 | 16-21 | 30 | 12 | 15 | 41/35 |
| GN-PG25-2105 | 类型5 | PG25 | 16-21 | 30 | 14 | / | 37/36 |
| GN-PG29-2001 | 类型1 | PG29 | 14-20 | 37 | 12 | 15 | 46/42 |
| GN-PG29-2501 | 类型1 | PG29 | 18-25 | 37 | 12 | 15 | 46/42 |
| GN-PG29-2502 | 类型2 | PG29 | 18-25 | 37 | 12 | 15 | 46/42 |
| GN-PG29-2503 | 类型3 | PG29 | 18-25 | 37 | 12 | 15 | 46/42 |
| GN-PG29-2504 | 类型4 | PG29 | 18-25 | 37 | 12 | / | 46/42 |
| GN-PG29-2505 | 类型5 | PG29 | 18-25 | 37 | 16 | / | 46/42 |
| 编号 | 类型 | 螺纹规格 | 电缆规格 | G | 标准版L | 加长版L | A & E |
| GN-PG36-2601 | 类型1 | PG36 | 20-26 | 47 | 15 | 18 | 56/52 |
| GN-PG36-3205 | 类型5 | PG36 | 22-32 | 47 | 17 | / | 56/53 |
| GN-PG36-3201 | 类型1 | PG36 | 23-32 | 47 | 15 | 18 | 56/52 |
| GN-PG36-3202 | 类型2 | PG36 | 23-32 | 47 | 15 | 18 | 56/52 |
| GN-PG36-3204 | 类型4 | PG36 | 23-32 | 47 | 15 | / | 56/52 |
| GN-PG36-3103 | 类型3 | PG36 | 24-31 | 47 | 15 | / | 56/52 |
| GN-PG42-3101 | 类型1 | PG42 | 25-31 | 54 | 18 | 20 | 65/60 |
| GN-PG42-3801 | 类型1 | PG42 | 30-38 | 54 | 18 | 20 | 65/60 |
| GN-PG42-3802 | 类型2 | PG42 | 30-38 | 54 | 18 | 20 | 65/60 |
| GN-PG42-3804 | 类型4 | PG42 | 30-38 | 54 | 18 | / | 65/60 |
| GN-PG42-4003 | 类型3 | PG42 | 31-40 | 54 | 20 | / | 65/62 |
| GN-PG42-3805 | 类型5 | PG42 | 32-38 | 54 | 17 | / | 65/60 |
| GN-PG48-3501 | 类型1 | PG48 | 29-35 | 59.3 | 18 | 20 | 69/68 |
| GN-PG48-4403 | 类型3 | PG48 | 35-44 | 59.3 | 20 | / | 69/70 |
| GN-PG48-4401 | 类型1 | PG48 | 37-44 | 59.3 | 18 | 20 | 69/68 |
| GN-PG48-4402 | 类型2 | PG48 | 37-44 | 59.3 | 18 | 20 | 69/68 |
| GN-PG48-4404 | 类型4 | PG48 | 37-44 | 59.3 | 18 | / | 69/68 |
| GN-PG48-4405 | 类型5 | PG48 | 37-44 | 59.3 | 18 | / | 69/68 |
| GN-PG63-5101 | 类型1 | PG63 | 42-51 | 70 | 30 | / | 82/77 |
