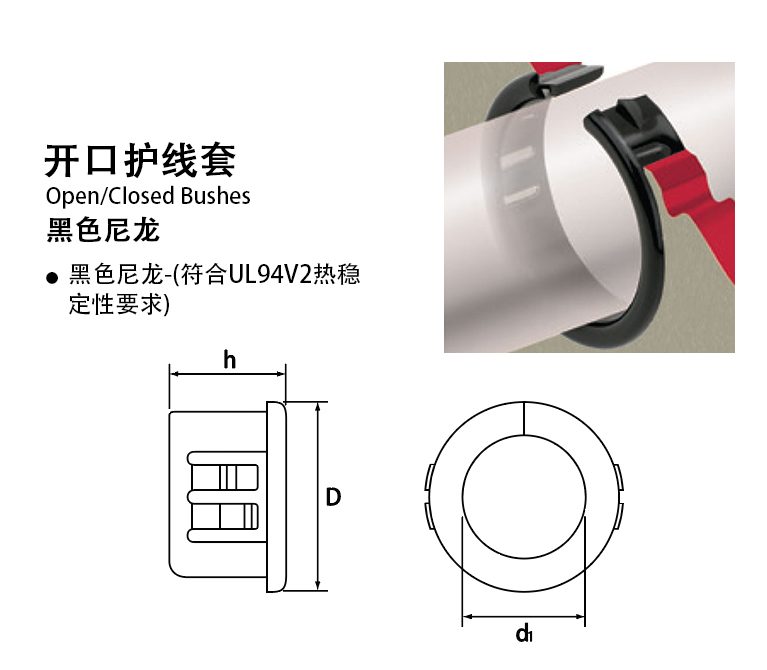

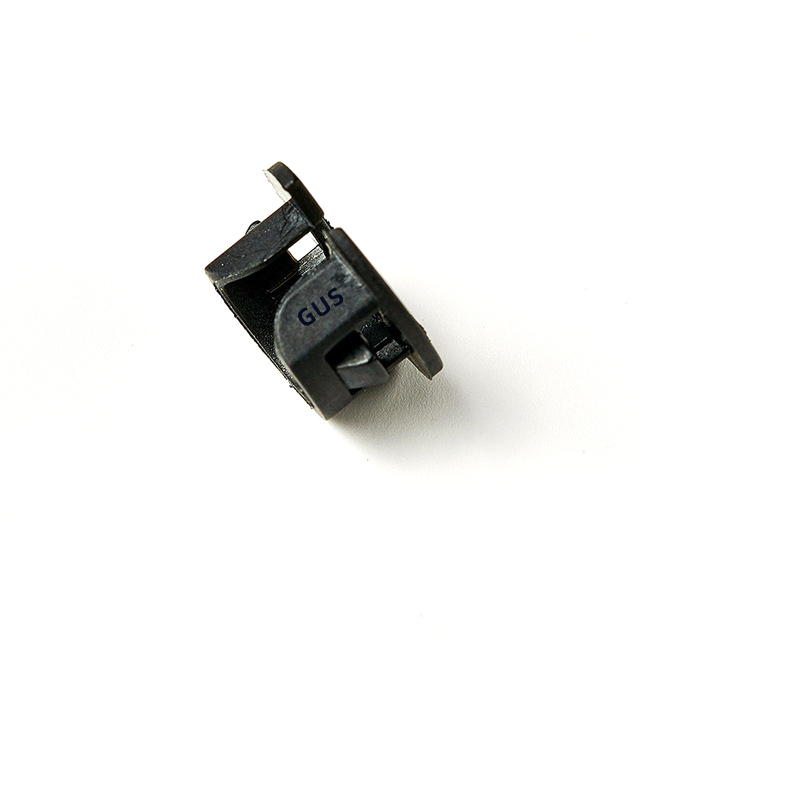

PGSA开口护线套
| GSUN编号 | 部件尺寸(mm) | ||||
| 安装孔径 | 最大面板厚度 | D | d1 | h | |
| GSPGSA-0407 | 7.0 | 1.0 | 10.4 | 4.8 | 5.0 |
| GSPGSA-1013 | 13.0 | 1.5 | 16.2 | 9.2 | 5.3 |
| GSPGSA-1316 | 16.0 | 1.4 | 19.4 | 12.2 | 5.4 |
| GSPGSA-1519 | 19.0 | 1.5 | 22.7 | 14.3 | 5.7 |
| GSPGSA-1822 | 22.0 | 1.6 | 25.5 | 17.6 | 5.6 |
| GSPGSA-20241 | 24.0 | 1.2 | 27.0 | 19.5 | 5.3 |
| GSPGSA-2024 | 24.0 | 1.6 | 27.0 | 19.5 | 5.3 |
| GSPGSA-2327 | 27.1 | 1.0 | 35.1 | 22.9 | 6.0 |
| GSPGSA-2529 | 29.0 | 1.1 | 35.1 | 24.5 | 7.0 |
| GSPGSB-0609 | 9.5 | 1.7 | 11.4 | 6.6 | 6.5 |
| GSPGSB-1A | 9.5 | 3.2 | 10.7 | 6.7 | 9.9 |
| GSPGSB-2A | 11.1 | 3.2 | 12.7 | 7.9 | 10.3 |
| GSPGSB-1013 | 13.0 | 3.5 | 14.9 | 9.0 | 10.5 |
| GSPGSB-3A | 14.3 | 3.2 | 16.3 | 9.9 | 10.3 |
| GSPGSB-1316 | 16.0 | 3.5 | 18.0 | 10.5 | 10.5 |
| GSPGSB-1216 | 16.5 | 3.3 | 18.6 | 12.3 | 10.0 |
| GSPGSB-1519 | 19.0 | 3.3 | 20.6 | 14.5 | 11.0 |
| GSPGSB-1822 | 22.0 | 3.5 | 24.8 | 17.3 | 11.5 |
| GSPGSB-9A | 25.0 | 3.0 | 26.4 | 20.4 | 10.3 |
| GSPGSB-4A | 25.4 | 3.2 | 26.6 | 20.6 | 10.3 |
| GSPGSB-5A | 27.8 | 3.2 | 29.4 | 22.2 | 10.3 |
| GSPGSB-6A | 31.8 | 3.2 | 34.1 | 26.6 | 10.3 |
| GSPGSB-7A | 34.9 | 3.2 | 37.3 | 29.7 | 10.3 |
| GSPGSB-8A | 38.1 | 3.2 | 40.1 | 31.7 | 10.7 |
