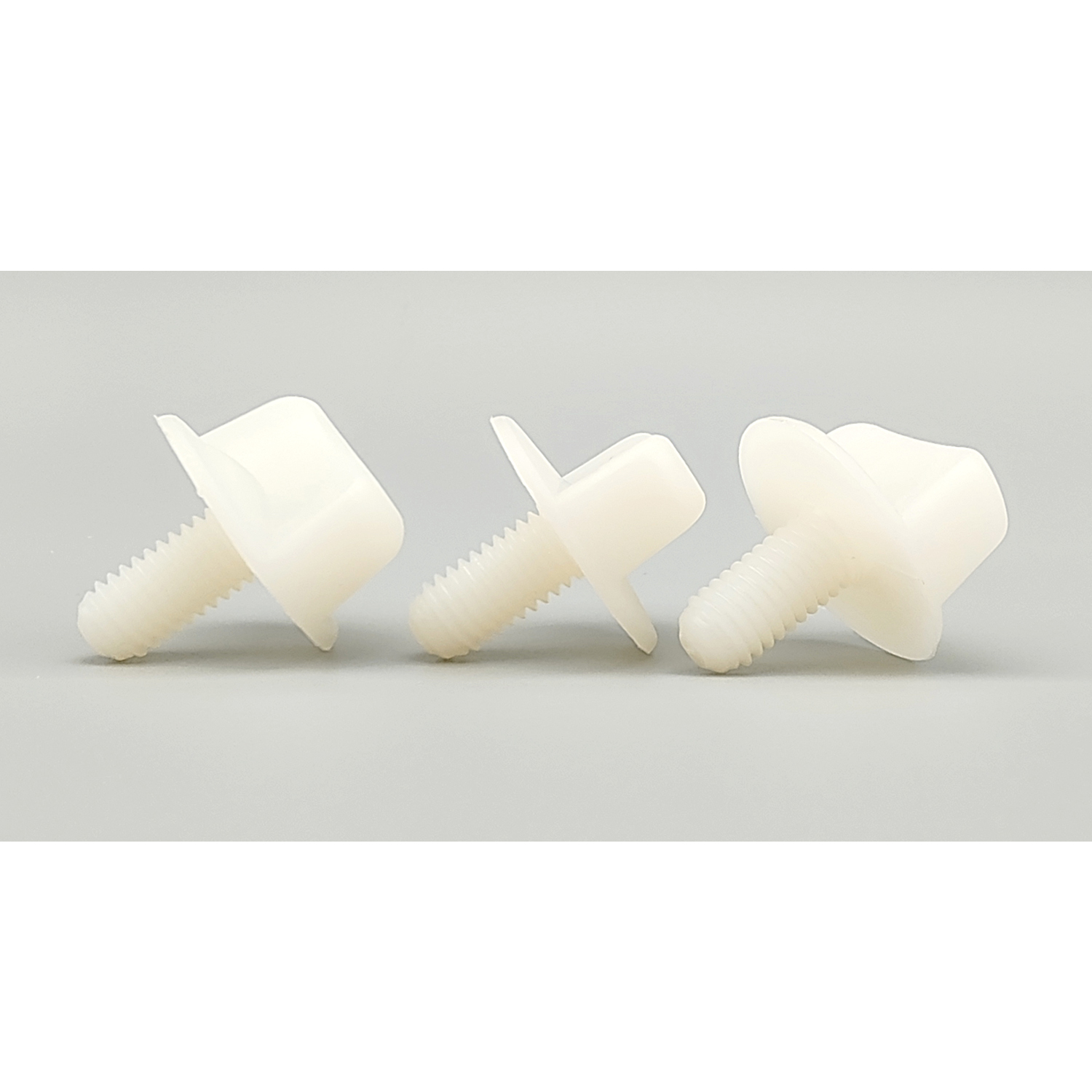

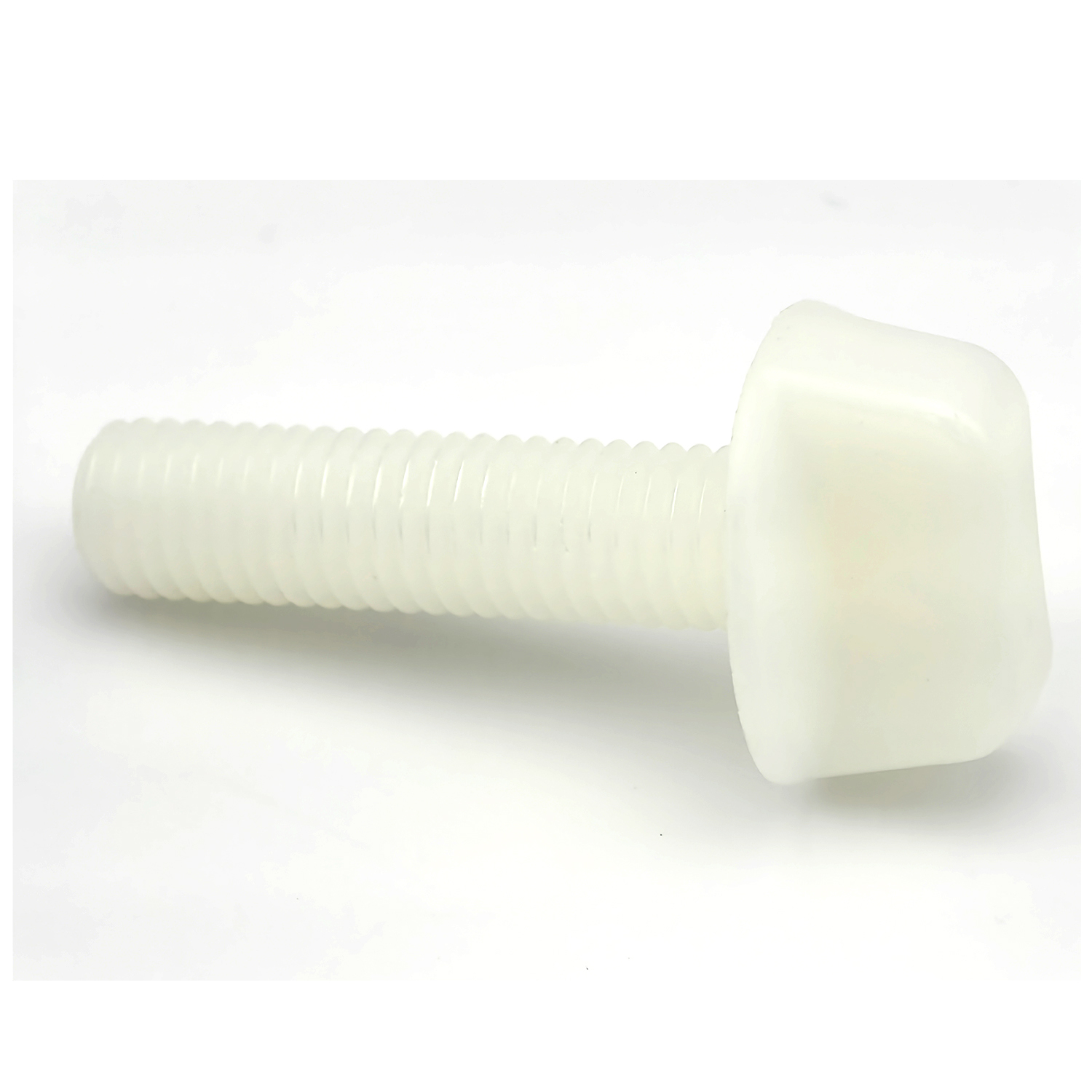

SR 1979蝶形螺钉带垫圈

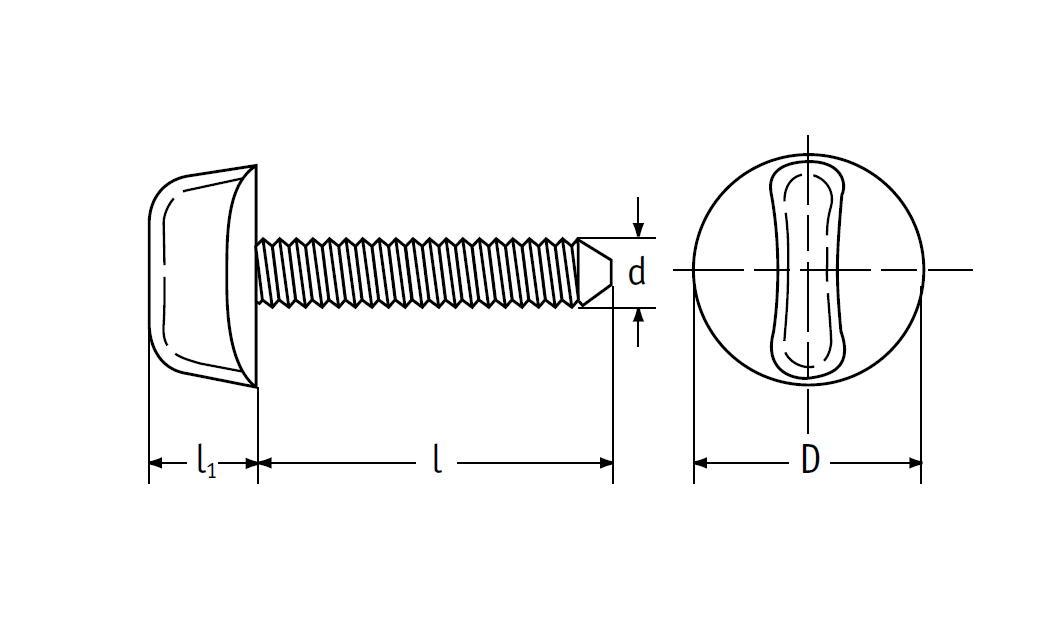

| 零件编号 | 尺寸(mm) | 标准包装 | |||
| d | I | D | 数量 | ||
| 0270460000VR | M4 x 0.7 | 8 | 16 | 10 | 1000 |
| 0270470000VR | M4 x 0.7 | 10 | 16 | 10 | 1000 |
| 0270480000VR | M4 x 0.7 | 12 | 16 | 10 | 1000 |
| 0270490000VR | M4 x 0.7 | 15 | 16 | 10 | 1000 |
| 0270520000VR | M4 x 0.7 | 20 | 16 | 10 | 1000 |
| 0270550000VR | M4 x 0.7 | 30 | 16 | 10 | 1000 |
| 0270570000VR | M5 x 0.8 | 6 | 16 | 10 | 1000 |
| 0270210000VR | M5 x 0.8 | 10 | 16 | 10 | 1000 |
| 0270590000VR | M5 x 0.8 | 15 | 16 | 10 | 1000 |
| 0270230000VR | M5 x 0.8 | 20 | 16 | 10 | 1000 |
| 0270240000VR | M5 x 0.8 | 25 | 16 | 10 | 1000 |
| 0270250000VR | M5 x 0.8 | 30 | 16 | 10 | 1000 |
| 0270260000VR | M5 x 0.8 | 40 | 16 | 10 | 1000 |
| 0270610000VR | M6 x 1.0 | 8 | 25 | 12 | 1000 |
| 0270010000VR | M6 x 1.0 | 10 | 25 | 12 | 1000 |
| 0270020000VR | M6 x 1.0 | 12 | 25 | 12 | 1000 |
| 0270620000VR | M6 x 1.0 | 15 | 25 | 12 | 1000 |
| 0270040000VR | M6 x 1.0 | 20 | 25 | 12 | 1000 |
| 0270060000VR | M6 x 1.0 | 25 | 25 | 12 | 1000 |
| 0270070000VR | M6 x 1.0 | 30 | 25 | 12 | 1000 |
| 0270630000VR | M6 x 1.0 | 40 | 25 | 12 | 1000 |
| 0270650000VR | M6 x 1.0 | 50 | 25 | 12 | 1000 |
| 0270660000VR | M6 x 1.0 | 60 | 25 | 12 | 500 |
| 0270200000VR | M8 x 1.25 | 8 | 25 | 12 | 1000 |
| 0270080000VR | M8 x 1.25 | 10 | 25 | 12 | 1000 |
| 0270090000VR | M8 x 1.25 | 16 | 25 | 12 | 1000 |
| 0270100000VR | M8 x 1.25 | 20 | 25 | 12 | 1000 |
| 0270110000VR | M8 x 1.25 | 25 | 25 | 12 | 1000 |
| 0270120000VR | M8 x 1.25 | 30 | 25 | 12 | 1000 |
| 0270130000VR | M8 x 1.25 | 35 | 25 | 12 | 1000 |
| 0270280000VR | M8 x 1.25 | 50 | 25 | 12 | 500 |
| 0270270000VR | M10 x 1.5 | 16 | 25 | 12 | 500 |
| 0270170000VR | M10 x 1.5 | 30 | 25 | 12 | 250 |
| 0270320000VR | M10 x 1.5 | 40 | 25 | 12 | 500 |
| 0270340000VR | M10 x 1.5 | 60 | 25 | 12 | 250 |
