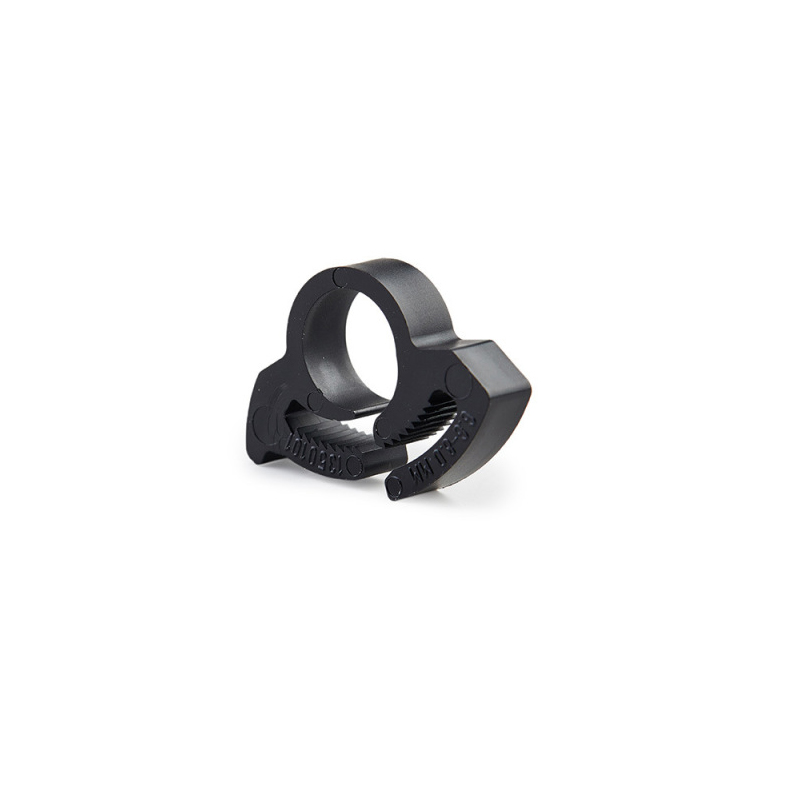

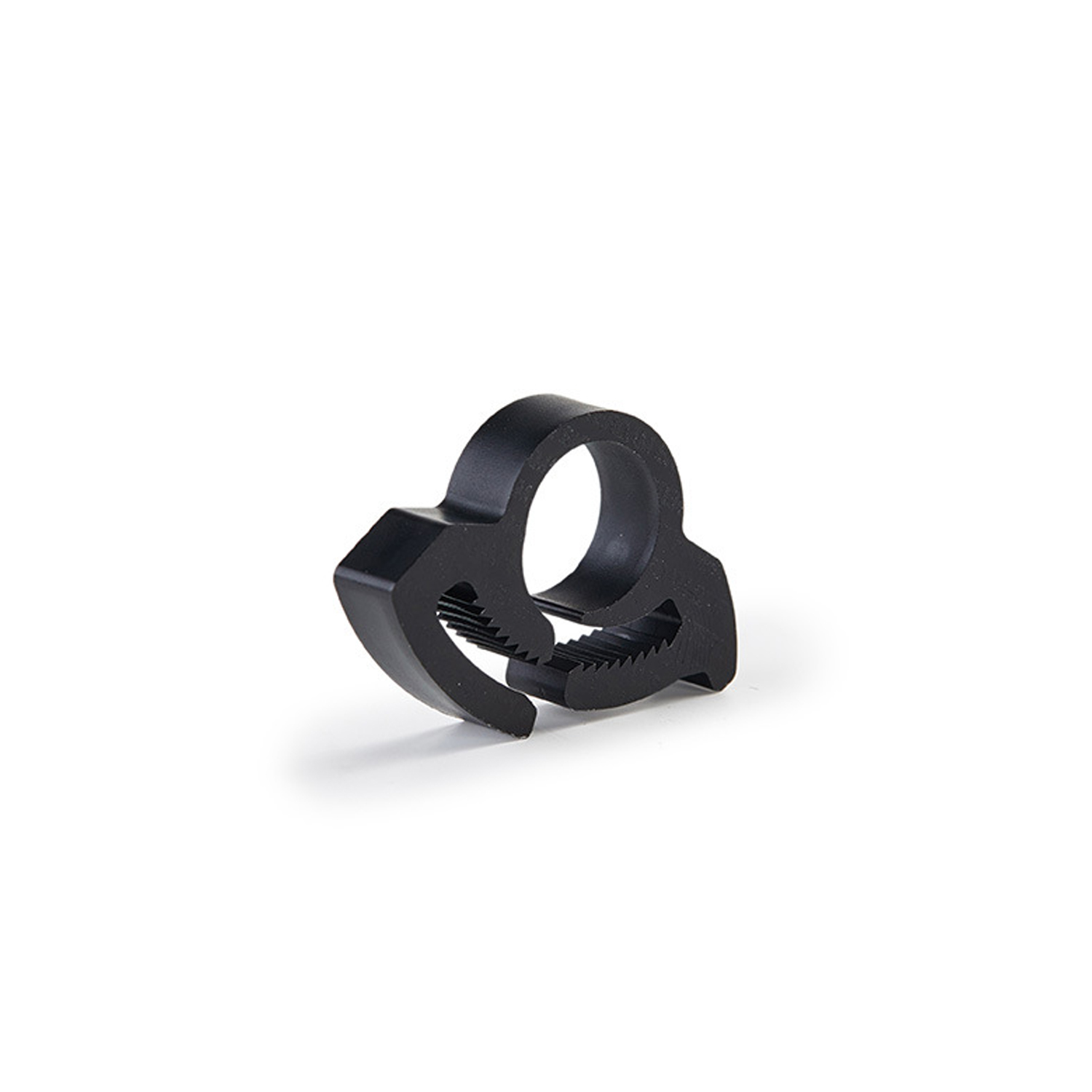

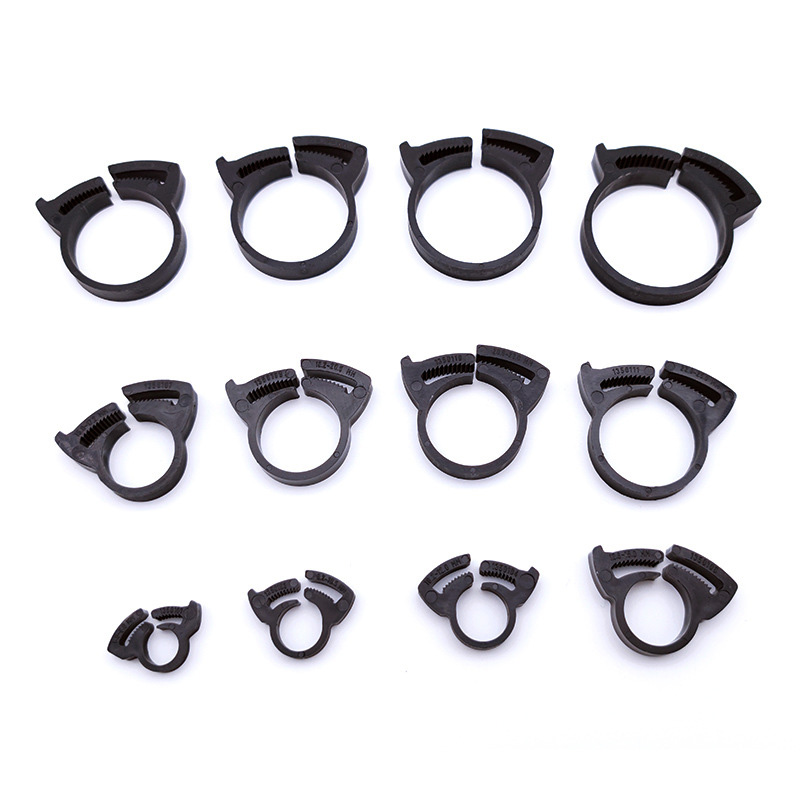

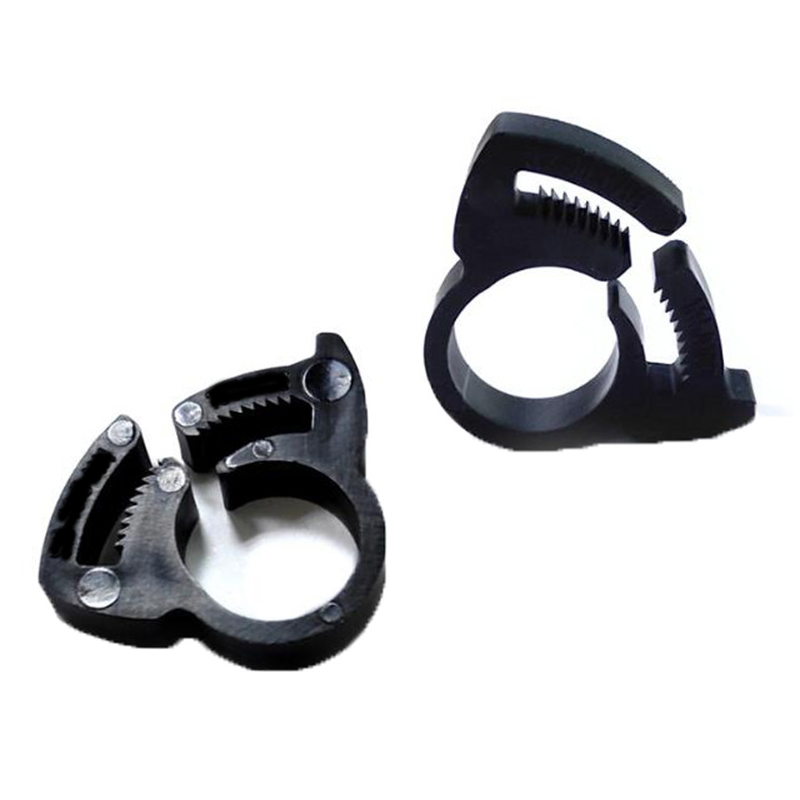

SR 1934 软管夹

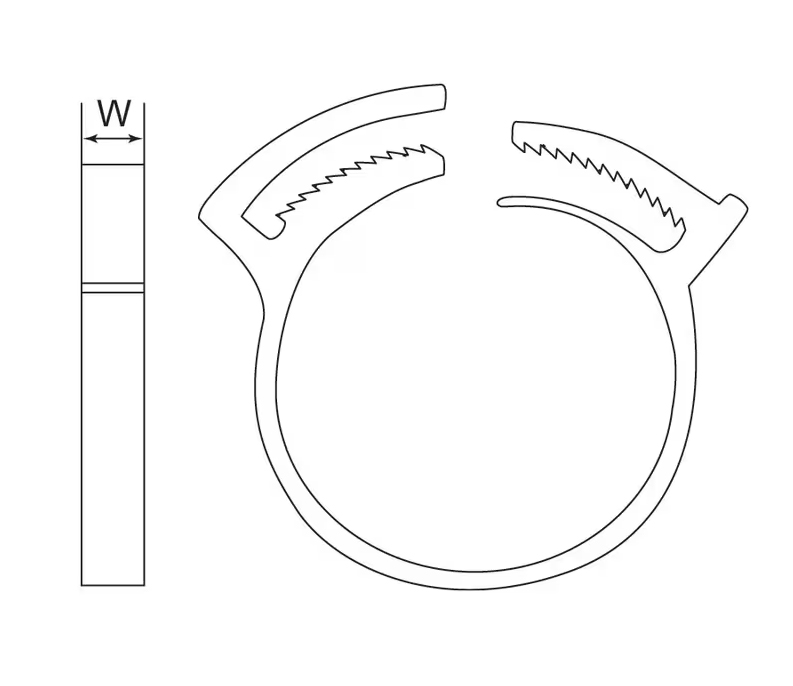

| 零件编号 | 尺寸(mm) | 标准包装数量 | |
| 软管直径 | W | ||
| 135010159902 | 6.6-8.0 | 5 | 100 |
| 135010259902 | 8.0-9.2 | 5 | 100 |
| 135010359902 | 9.2-10.5 | 5 | 100 |
| 135010459902 | 10.5-12.0 | 6 | 100 |
| 135010659902 | 12.8-15.0 | 7 | 100 |
| 135010759902 | 15.0-17.2 | 7 | 100 |
| 135010859902 | 17.0-18.5 | 7 | 100 |
| 135010959902 | 18.2-20.5 | 7 | 100 |
| 135011059902 | 20.5-23.0 | 7 | 100 |
| 135011159902 | 22.0-25.0 | 7 | 100 |
| 135011259902 | 25.0-28.0 | 7 | 100 |
| 135011359902 | 27.0-30.0 | 7.5 | 100 |
| 135011459902 | 29.5-32.5 | 7.5 | 100 |
| 135011559902 | 32.5-35.5 | 8 | 100 |
| 135011659902 | 35.0-38.5 | 8 | 50 |
| 135011759902 | 38.0-41.5 | 8 | 50 |
| 135011859902 | 41.0-44.5 | 8 | 50 |
| 135011959902 | 44.0-47.5 | 8 | 50 |
| 135012059902 | 47.0-50.5 | 8 | 50 |
| 135012159902 | 50.0-53.5 | 8 | 50 |
| 135012259902 | 53.0-57.0 | 8 | 50 |
| 135012359902 | 56.5-60.5 | 8 | 50 |
| 135012459902 | 60.0-65.0 | 8 | 50 |
| 135012559902 | 66.0-70.0 | 8 | 50 |
| 135012659902 | 70.0-75.0 | 8 | 50 |
| 135012759902 | 76.0-80.0 | 8 | 50 |
| 135012859902 | 80.0-85.0 | 8 | 50 |
