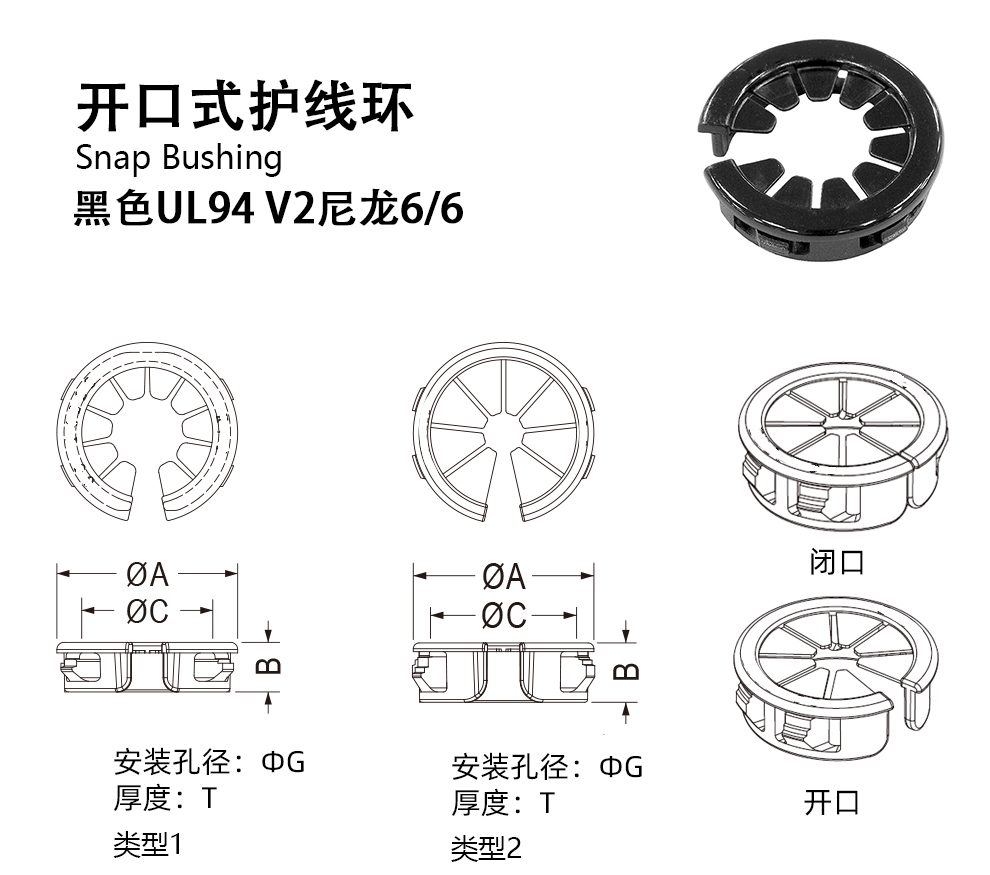

开口式护线环SC系列
| 零件编号 | 类型 | A | B | C | G | T | 包装 |
| GSC-0712 | 2 | 15.3 | 9.8 | 10.3 | 12.7 | 0.8~3.3 | 1000 |
| GSC-1115 | 2 | 18.8 | 10.3 | 13.8 | 15.9 | 0.8~3.3 | 1000 |
| GSC-1421S | 1 | 24.5 | 8.9 | 17.85 | 21 | 0.6~1.6 | 250 |
| GSC-1422 | 2 | 25.5 | 10.3 | 18.5 | 22.2 | 0.8~3.3 | 250 |
| GSC-1422S | 1 | 25.5 | 7 | 18.5 | 22.2 | 0.6~1.2 | 250 |
| GSC-2027 | 2 | 31.5 | 10.3 | 25.5 | 27.8 | 0.8~3.3 | 200 |
| GSC-2331 | 2 | 38.7 | 10.3 | 29.3 | 31.8 | 0.8~3.3 | 200 |
| GSC-2534 | 2 | 39.2 | 10.3 | 31.2 | 34.9 | 0.8~3.3 | 200 |
| GSC-2638 | 2 | 42.6 | 10.7 | 32.6 | 38.1 | 0.8~3.3 | 200 |

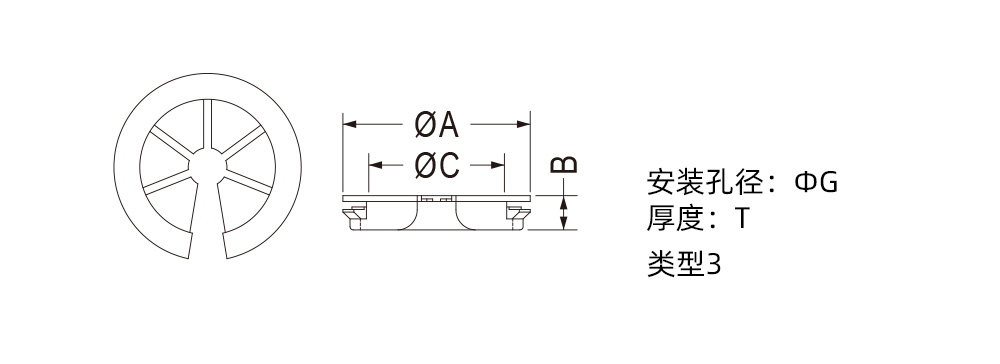

开口式护线环SC系列
| 零件编号 | 类型 | A | B | C | G | T | 包装 |
| GSC-1925S | 3 | 29 | 5.3 | 21 | 25.4 | 0.8~1.0 | 500 |
| GSC-1925A | 3 | 29 | 11.4 | 21 | 25.4 | 0.8~3.0 | 500 |
| GSC-1319A | 3 | 22.6 | 9.75 | 15.3 | 19 | 0.8~3.2 | 500 |
