GAL/GNE铝线夹

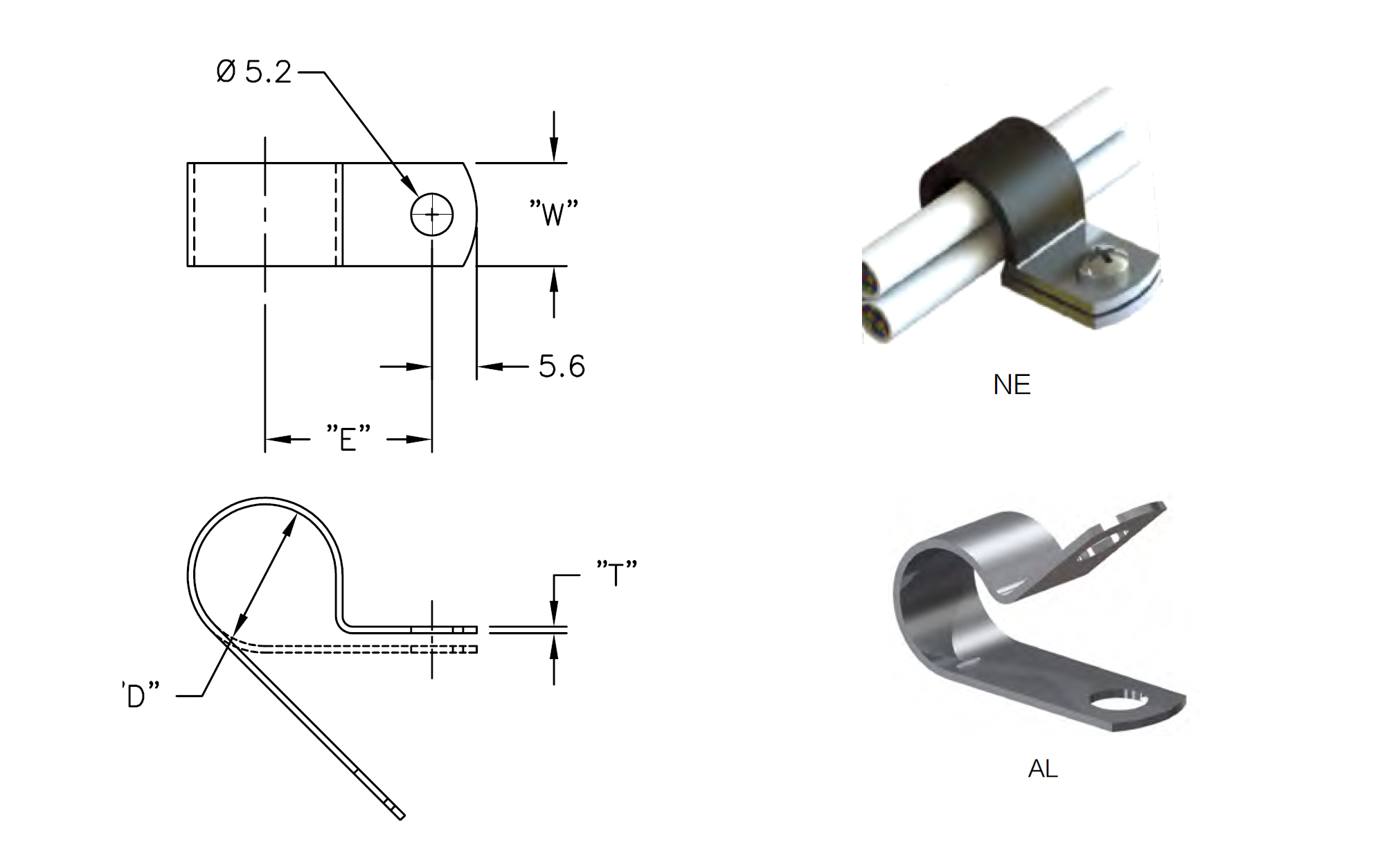

| 零件编号 | “D” 捆绑直径 | 尺寸(mm) | 标准包装数量 | |||
| AL铝线夹 | NE乙烯覆层铝线夹 | “E” | “T” | “W” | ||
| GAL2A | – | 3.2 | 11.7 | 0.8 | 9.5 | 1000 |
| GAL3A | GNE3 | 4.8 | 12.7 | 0.8 | 9.5 | 1000 |
| GAL4A | GNE4 | 6.4 | 13.5 | 0.8 | 9.5 | 1000 |
| GAL5A | GNE5 | 7.9 | 14.2 | 0.8 | 9.5 | 1000 |
| GAL6A | GNE6 | 9.5 | 15 | 0.8 | 9.5 | 1000 |
| GAL7A | GNE7 | 11.1 | 15.7 | 0.8 | 9.5 | 1000 |
| GAL8A | GNE8 | 12.7 | 16.5 | 0.8 | 9.5 | 1000 |
| GAL9A | GNE9 | 14.3 | 19.1 | 0.8 | 9.5 | 1000 |
| GAL 10A | GNE10 | 15.9 | 19.8 | 0.8 | 9.5 | 1000 |
| GAL11 | GNE11 | 17.5 | 20.6 | 1.6 | 12.7 | 500 |
| GAL 12 | GNE12 | 19.1 | 21.3 | 1.6 | 12.7 | 500 |
| GAL 14 | GNE14 | 22.2 | 22.9 | 1.6 | 12.7 | 500 |
| GAL 16 | GNE16 | 25.4 | 24.4 | 1.6 | 12.7 | 500 |
| GAL 18 | GNE18 | 28.6 | 26.7 | 1.6 | 12.7 | 500 |
| GNE20 | 31.8 | 28.2 | 1.6 | 12.7 | 500 | |
