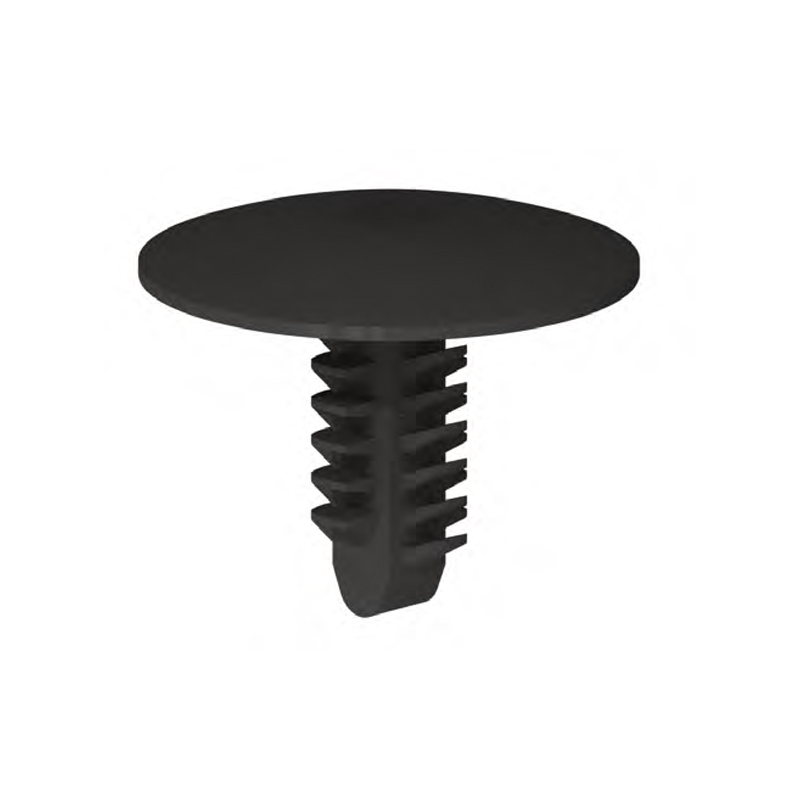

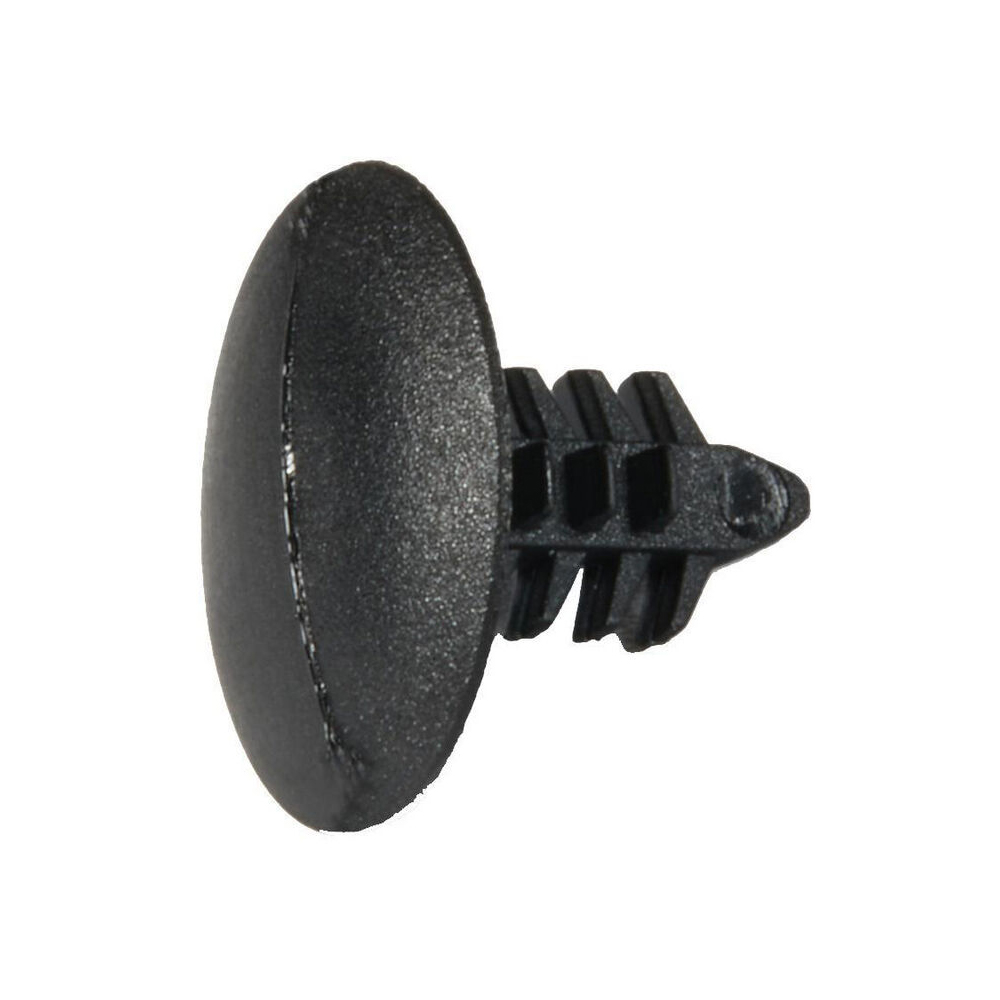

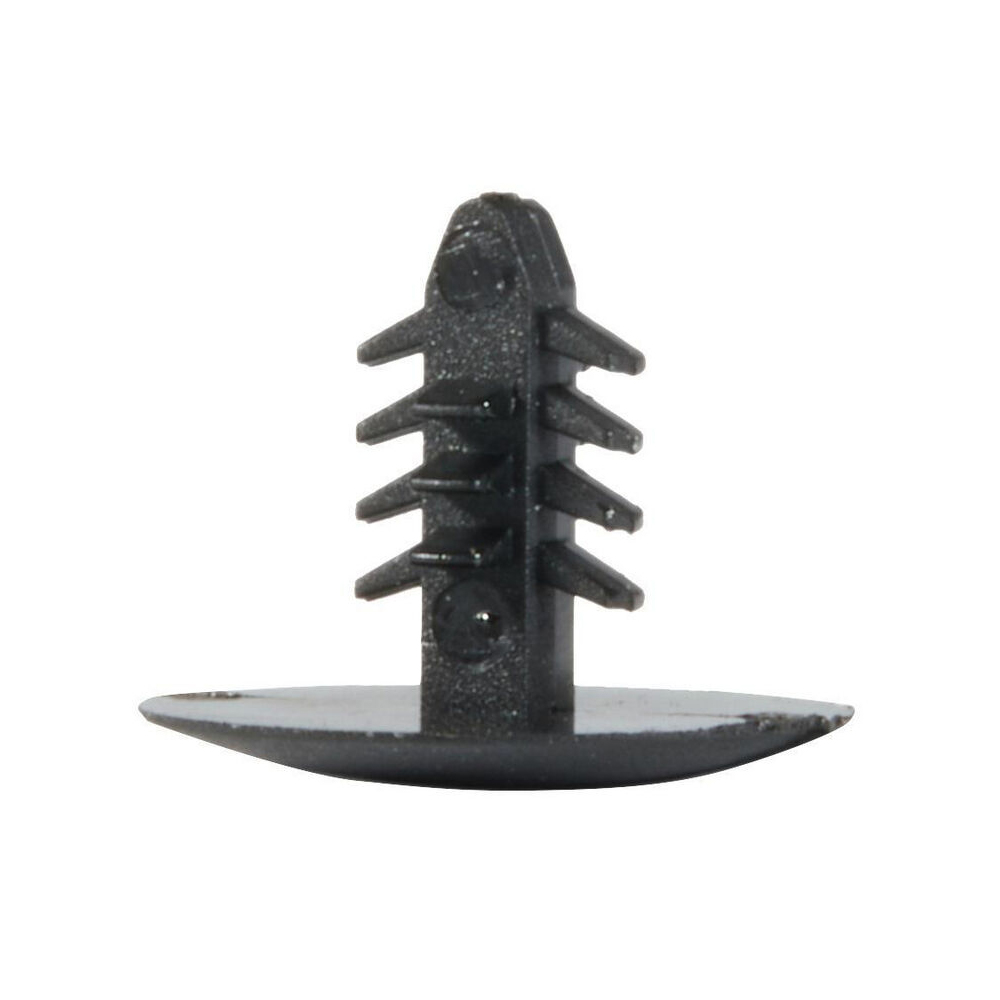

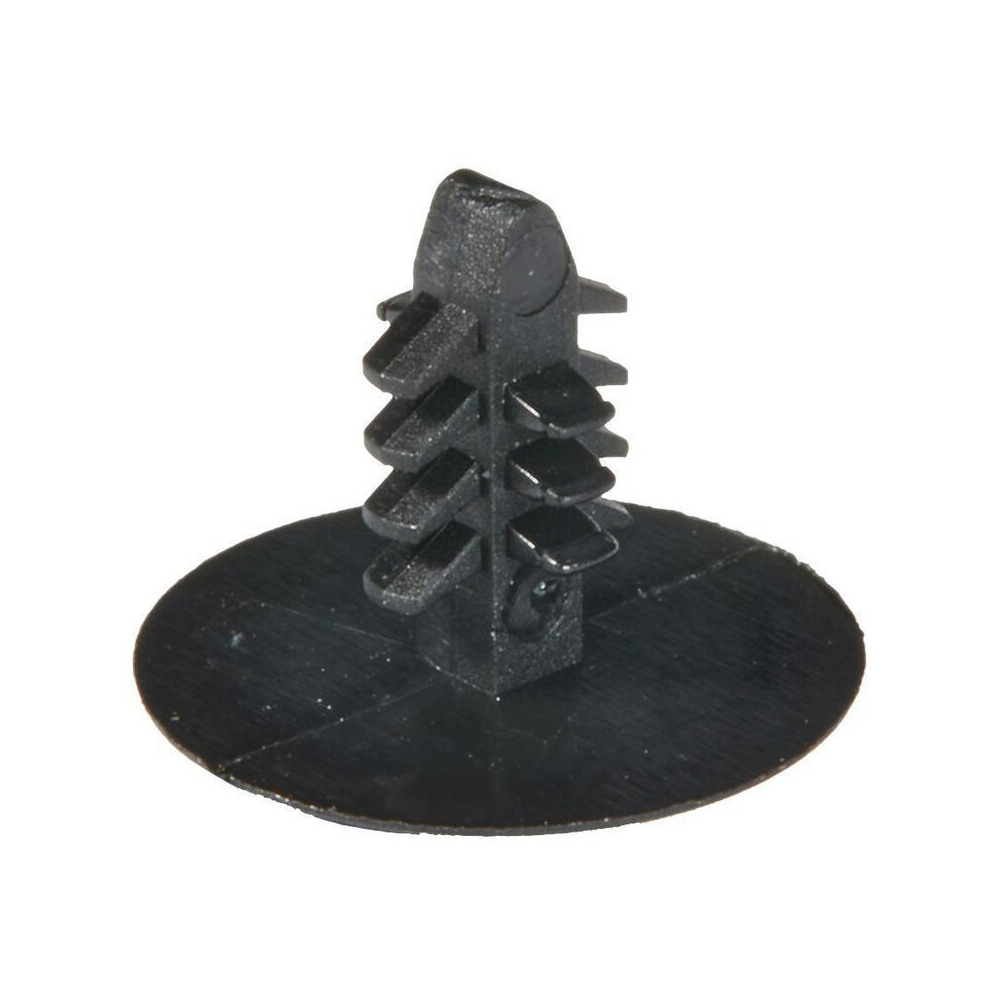

RBF 倒钩型螺钉

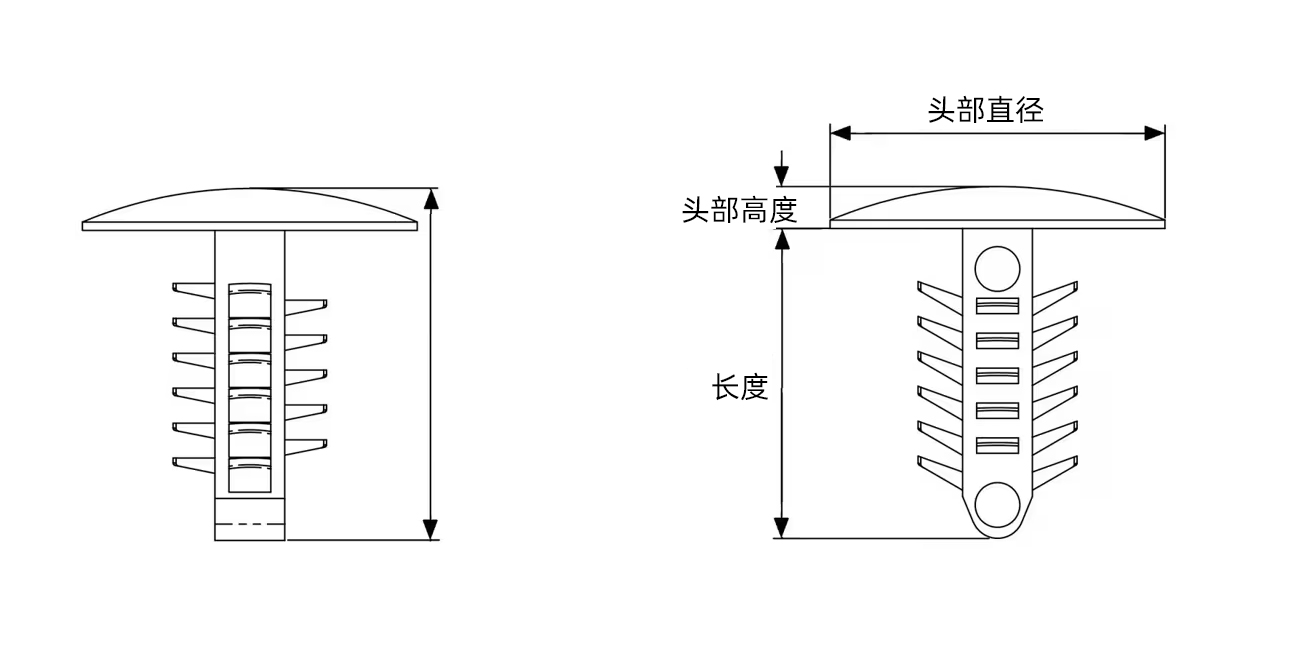

| 零件编号 | 尺寸(mm) | 标准包装数量 | ||||
| 孔径 | 头部直径 | 建议板厚 | 头部高度 | 长度 | ||
| RBF-4-8.6-8 | 4 | 8 | 2.1 – 4.3 | 1 | 8.6 | 1000 |
| RBF-4-11.1-8 | 4 | 8 | 2.1 – 7.2 | 1 | 11.1 | 1000 |
| RBF-4-15-8 | 4 | 8 | 5.7 – 10.7 | 1 | 15 | 1000 |
| RBF-4-8.6-12 | 4 | 12 | 2.1 – 4.3 | 1.5 | 8.6 | 1000 |
| RBF-4-11.1-12 | 4 | 12 | 2.1 – 7.2 | 1.5 | 11.1 | 1000 |
| RBF-4-15-12 | 4 | 12 | 5.7 – 10.7 | 1.5 | 15 | 1000 |
| RBF-4-8.6-16 | 4 | 16 | 2.1 – 4.3 | 2 | 8.6 | 1000 |
| RBF-4-11.1-16 | 4 | 16 | 2.1 – 7.2 | 2 | 11.1 | 1000 |
| RBF-4-15-16 | 4 | 16 | 5.7 – 10.7 | 2 | 15 | 1000 |
| RBF-4.8-8.6-8 | 4.76 | 8 | 2.1 – 4.3 | 1 | 8.6 | 1000 |
| RBF-4.8-11.1-8 | 4.76 | 8 | 2.1 – 7.2 | 1 | 11.1 | 1000 |
| RBF-4.8-15-8 | 4.76 | 8 | 5.7 – 10.7 | 1 | 15 | 1000 |
| RBF-4.8-8.6-12 | 4.76 | 12 | 2.1 – 4.3 | 1.5 | 8.6 | 1000 |
| RBF-4.8-11.1-12 | 4.76 | 12 | 2.1 – 7.2 | 1.5 | 11.1 | 1000 |
| RBF-4.8-15-12 | 4.76 | 12 | 5.7 – 10.7 | 1.5 | 15 | 1000 |
| RBF-4.8-8.6-16 | 4.76 | 16 | 2.1 – 4.3 | 2 | 8.6 | 1000 |
| RBF-4.8-11.1-16 | 4.76 | 16 | 2.1 – 7.2 | 2 | 11.1 | 1000 |
| RBF-4.8-15-16 | 4.76 | 16 | 5.7 – 10.7 | 2 | 15 | 1000 |
| RBF-6.4-8.6-8 | 6.35 | 8 | 2.1 – 4.3 | 1 | 8.6 | 1000 |
| RBF-6.4-11.1-8 | 6.35 | 8 | 2.1 – 7.2 | 1 | 11.1 | 1000 |
| RBF-6.4-15-8 | 6.35 | 8 | 5.7 – 10.7 | 1 | 15 | 1000 |
| RBF-6.4-8.6-12 | 6.35 | 12 | 2.1 – 4.3 | 1.5 | 8.6 | 1000 |
| RBF-6.4-11.1-12 | 6.35 | 12 | 2.1 – 7.2 | 1.5 | 11.1 | 1000 |
| RBF-6.4-8.6-16 | 6.35 | 16 | 2.1 – 4.3 | 2 | 8.6 | 1000 |
| RBF-6.4-11.1-16 | 6.35 | 16 | 2.1 – 7.2 | 2 | 11.1 | 1000 |
| RBF-6.4-15-16 | 6.35 | 16 | 5.7 – 10.7 | 2 | 15 | 1000 |
| RBF-7.1-15-8 | 7.14 | 8 | 3.8 – 10.7 | 1 | 15 | 1000 |
| RBF-7.1-19-8 | 7.14 | 8 | 6.9 – 14.2 | 1 | 19 | 1000 |
| RBF-7.1-11.1-12 | 7.14 | 12 | 2.1 – 7.2 | 1.5 | 11.1 | 1000 |
| RBF-7.1-15-12 | 7.14 | 12 | 3.8 – 10.7 | 1.5 | 15 | 1000 |
| RBF-7.1-19-12 | 7.14 | 12 | 6.9 – 14.2 | 1.5 | 19 | 1000 |
| RBF-7.1-11.1-16 | 7.14 | 16 | 2.1 – 7.2 | 2 | 11.1 | 1000 |
| RBF-7.1-15-16 | 7.14 | 16 | 3.8 – 10.7 | 2 | 15 | 1000 |
| RBF-7.1-19-16 | 7.14 | 16 | 6.9 – 14.2 | 2 | 19 | 1000 |
