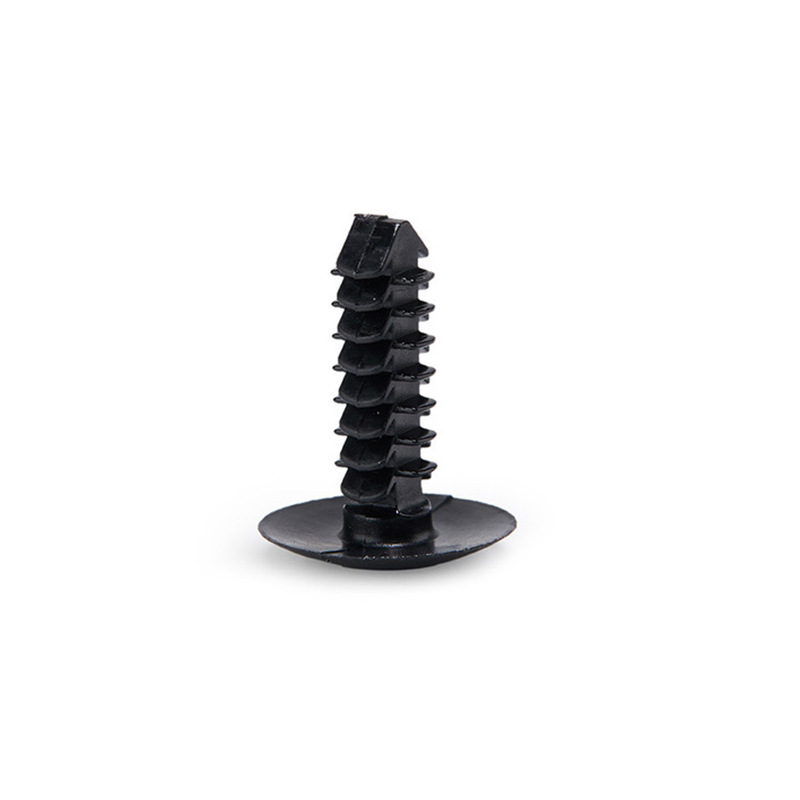

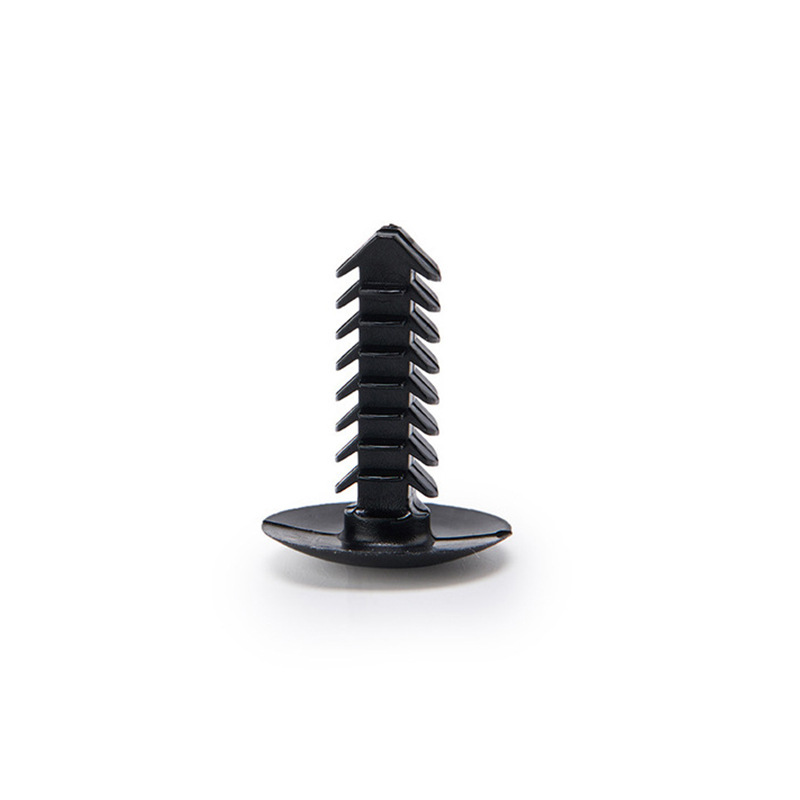

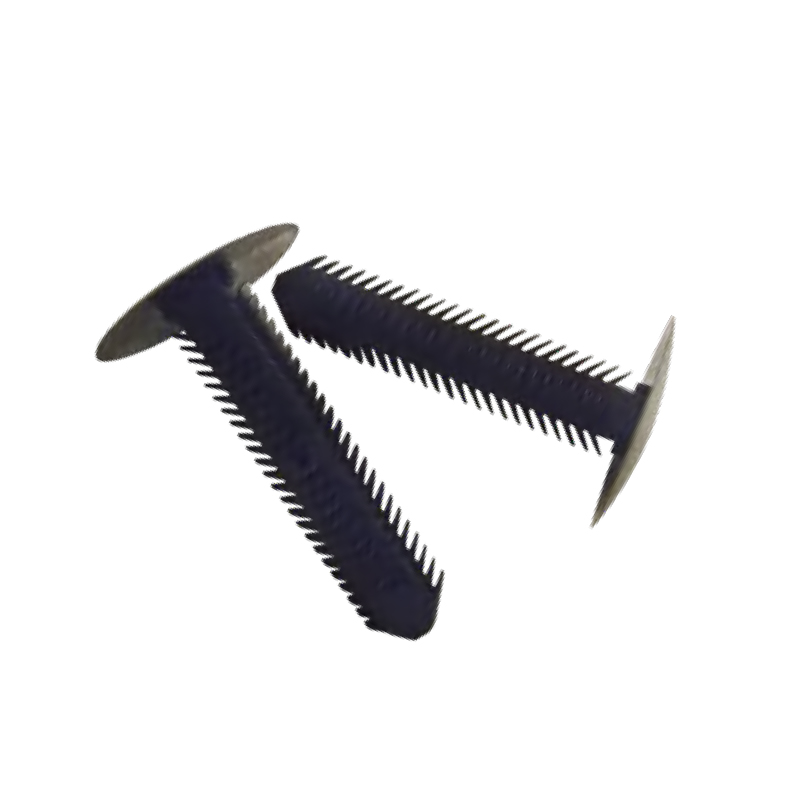

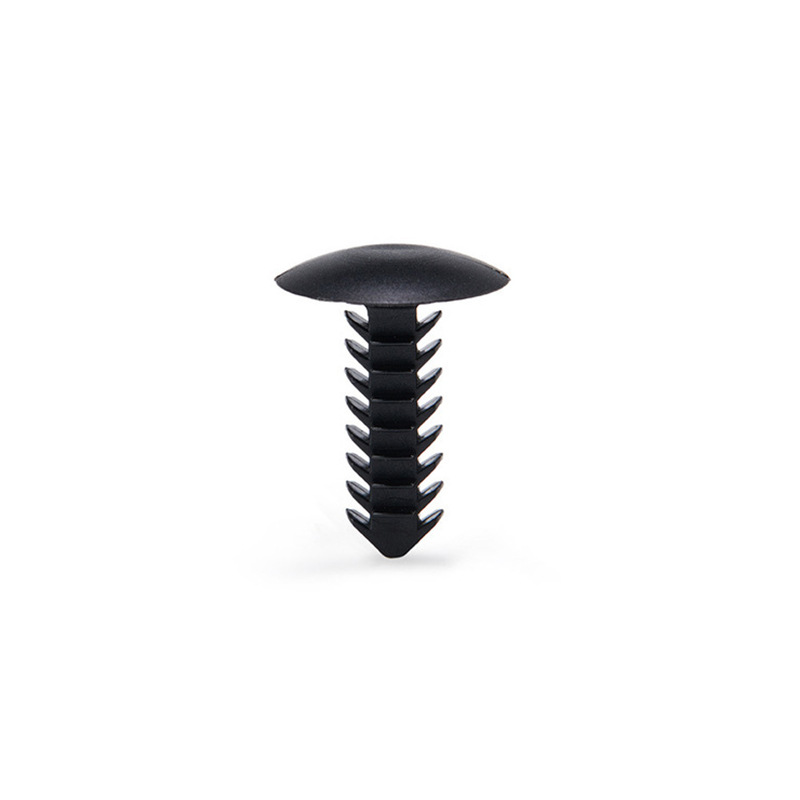

XT 圣诞树倒钩型固定钉

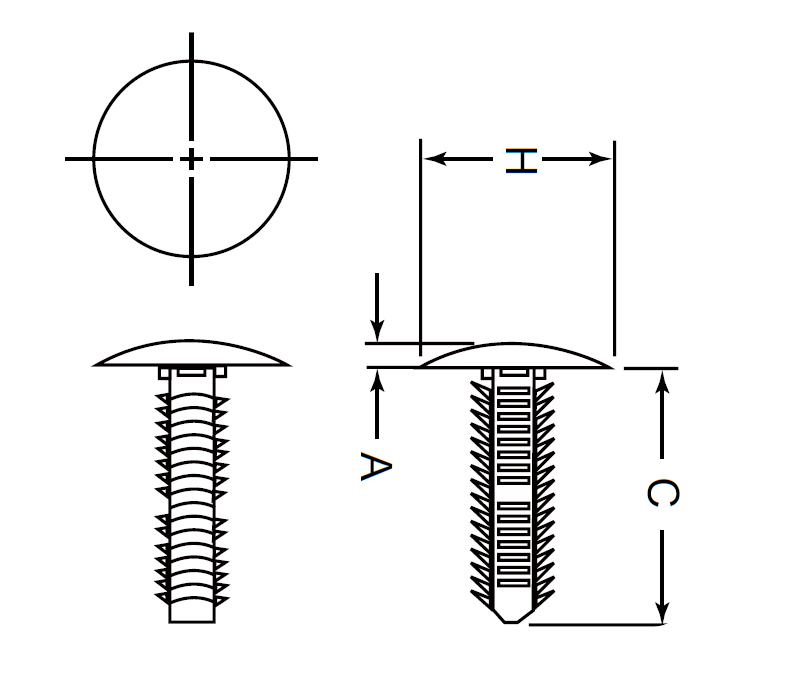

| 零件编号 | 孔径(mm) | 板材厚度(mm) | 产品尺寸(mm) | 标准包装数量 | ||
| H | C | A | ||||
| 27XT1250125 | 3.2 | 1.6-3.2 | 8.7 | 5.3 | 1.6 | 1,000 |
| 27XT1250250 | 3.2 | 1.6-6.4 | 8.7 | 8.2 | 1.6 | 1,000 |
| 27XT1250375 | 3.2 | 1.6-9.5 | 8.7 | 11.6 | 1.6 | 1,000 |
| 27XT1880250 | 4.8 | 1.6-6.4 | 12.7 | 8.8 | 2 | 1,000 |
| 27XT1880375 | 4.8 | 1.6-9.5 | 12.7 | 12 | 2 | 1,000 |
| 27XT1880500 | 4.8 | 1.6-12.7 | 12.7 | 15.2 | 2 | 1,000 |
| 27XT1880625 | 4.8 | 1.6-15.9 | 12.7 | 18.4 | 2 | 1,000 |
| 27XT1880750 | 4.8 | 1.6-19.1 | 12.7 | 21.5 | 2 | 1,000 |
| 27XT2500250 | 6.4 | 1.6-6.4 | 17.8 | 9.9 | 2.5 | 1,000 |
| 27XT2500375 | 6.4 | 1.6-9.5 | 17.8 | 12.9 | 2.5 | 1,000 |
| 27XT2500500 | 6.4 | 1.6-12.7 | 17.8 | 16 | 2.5 | 1,000 |
| 27XT2500625 | 6.4 | 1.6-15.9 | 17.8 | 19.2 | 2.5 | 1,000 |
| 27XT2500750 | 6.4 | 1.6-19.1 | 17.8 | 22.4 | 2.5 | 1,000 |
| 27XT2500875 | 6.4 | 1.6-22.2 | 17.8 | 25.5 | 2.5 | 1,000 |
| 27XT2501000 | 6.4 | 1.6-25.4 | 17.8 | 28.4 | 2.5 | 1,000 |
| 27XT2501250 | 6.4 | 1.6-31.8 | 17.8 | 35.1 | 2.5 | 1,000 |
| 27XT2501500 | 6.4 | 1.6-38.1 | 17.8 | 41.5 | 2.5 | 1,000 |
| 27XT2501750 | 6.4 | 1.6-44.45 | 17.8 | 47.8 | 2.5 | 1,000 |
| 27XT2502000 | 6.4 | 1.6-50.8 | 20 | 54.2 | 2.5 | 1,000 |
| 27XT2810250 | 7.1 | 1.6-6.4 | 20 | 9.8 | 2.5 | 1,000 |
| 27XT2810375 | 7.1 | 1.6-9.5 | 20 | 13 | 2.5 | 1,000 |
| 27XT2810500 | 7.1 | 1.6-12.7 | 20 | 16.3 | 2.5 | 1,000 |
| 27XT2810625 | 7.1 | 1.6-15.9 | 20 | 19.5 | 2.5 | 1,000 |
| 27XT2810750 | 7.1 | 1.6-19.1 | 20 | 22.7 | 2.5 | 1,000 |
| 27XT2810875 | 7.1 | 1.6-22.2 | 20 | 25.9 | 2.5 | 1,000 |
| 27XT2811000 | 7.1 | 1.6-25.4 | 20 | 29.1 | 2.5 | 1,000 |
| 27XT2811250 | 7.1 | 1.6-31.8 | 20 | 35.6 | 2.5 | 1,000 |
| 27XT2811500 | 7.1 | 1.6-38.1 | 20 | 41.9 | 2.5 | 1,000 |
| 27XT2811750 | 7.1 | 1.6-44.5 | 20 | 48.3 | 2.5 | 1,000 |
| 27XT3120250 | 7.9 | 1.6-6.35 | 22.2 | 10.4 | 2.5 | 1,000 |
| 27XT3120375 | 7.9 | 1.6-9.53 | 22.2 | 13.4 | 2.5 | 1,000 |
| 27XT3120625 | 7.9 | 1.6-15.9 | 22.2 | 19.9 | 2.5 | 1,000 |
| 27XT3120750 | 7.9 | 1.6-19.1 | 22.2 | 22.7 | 2.5 | 1,000 |
| 27XT3120875 | 7.9 | 1.6-22.2 | 22.2 | 26.3 | 2.5 | 1,000 |
| 27XT3121000 | 7.9 | 1.6-25.4 | 22.2 | 29.5 | 2.5 | 1,000 |
| 27XT3121250 | 7.9 | 1.6-31.8 | 22.2 | 36 | 2.5 | 1,000 |
| 27XT3121500 | 7.9 | 1.6-38.1 | 22.2 | 42.4 | 2.5 | 1,000 |
| 27XT3750250 | 9.5 | 1.6-6.35 | 25.4 | 11.3 | 2.5 | 1,000 |
| 27XT3750500 | 9.5 | 1.6-9.53 | 25.4 | 17.5 | 2.5 | 1,000 |
