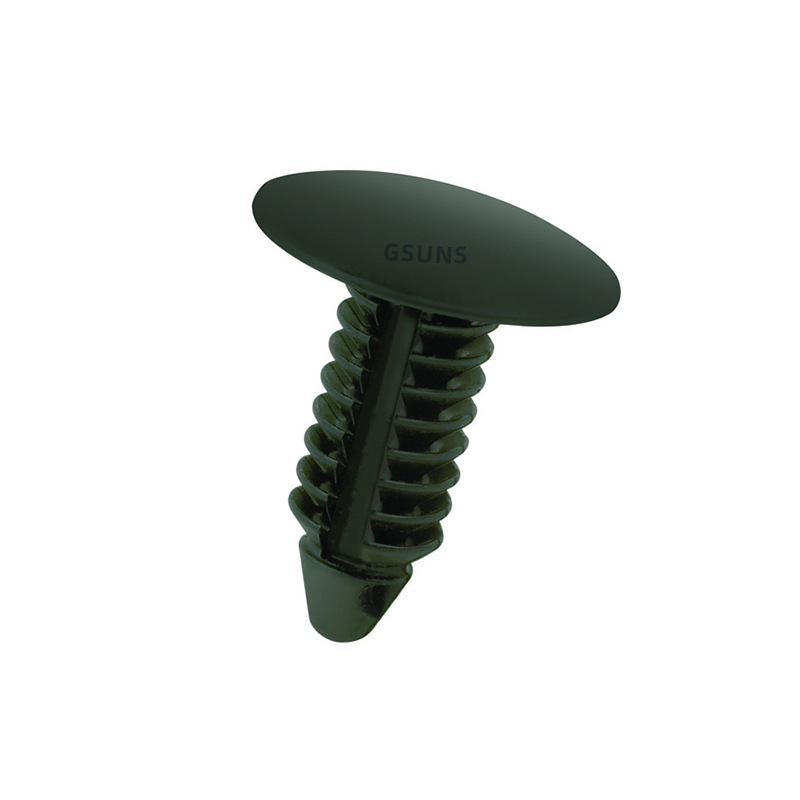

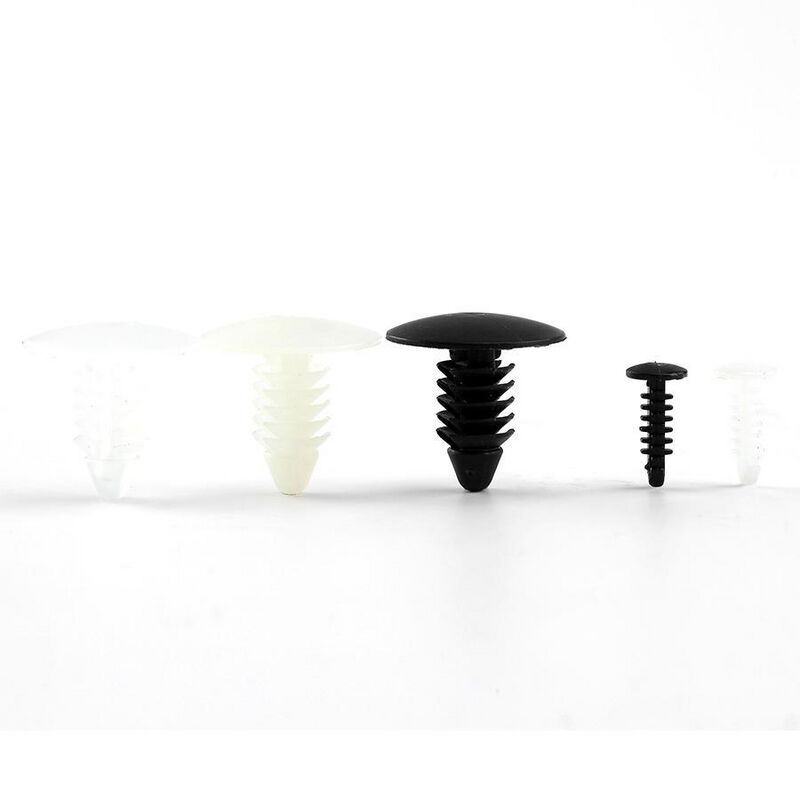

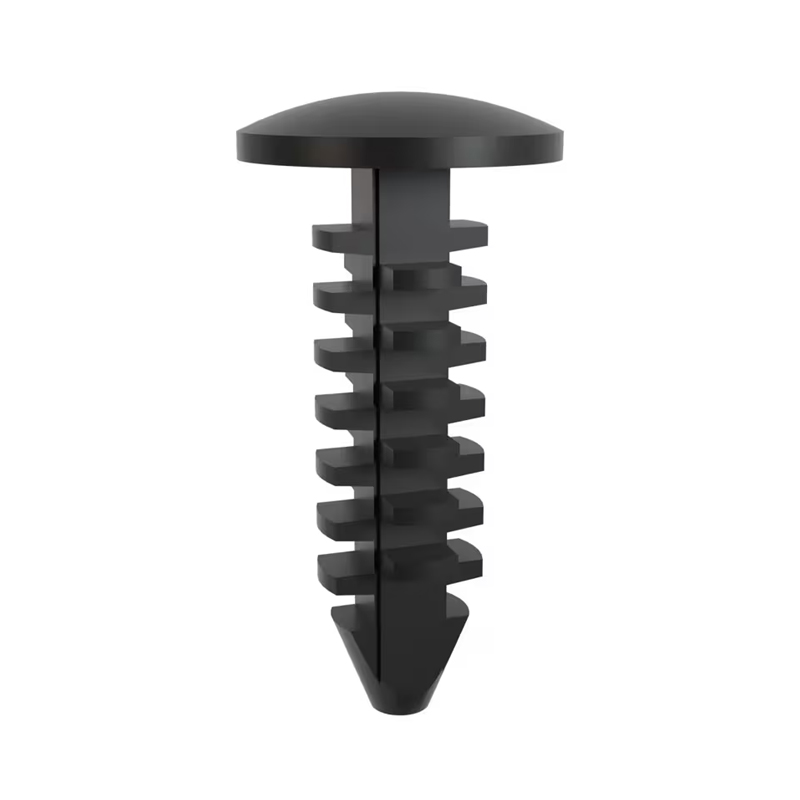

倒钩压入式固定钉

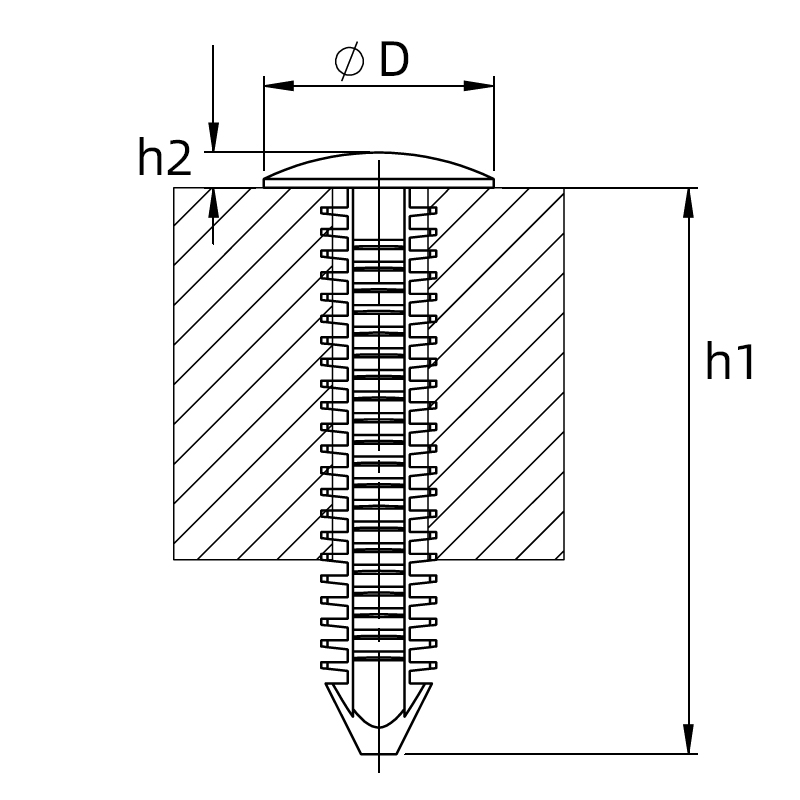

| 零件编号 | 孔径 (mm) | 板厚 (mm) | D (mm) | h1 (mm) | h2 (mm) | 标准包装 数量 | |
| 黑色尼龙6.6 | 本色尼龙6 | ||||||
| 167201569902 | 167201500002 | 2.7- 3.3(方孔) | 1.5 – 8.0 | 6 | 11 | 0.9 | 100 |
| 167202069902 | 167202000002 | 2.7 – 3.3(方孔) | 1.5 – 15.0 | 6 | 18 | 0.9 | 100 |
| 468809 | 468833 | 3.0 – 3.2(方孔) | 4.0-16.5 | 5.5 | 18.5 | 1 | 1000 |
| 468811 | 468835 | 3.5(圆孔) | 0.7-5.0 | 9.1 | 9.5 | 1.5 | 1000 |
| 167204569902 | 167204500002 | 4.1- 5.2(方孔) | 1.5 – 5.5 | 12 | 10 | 1.2 | 100 |
| 460436 | 4.8(圆孔) | 0.6-9.23 | 9.5 | 12.7 | 1.8 | 1000 | |
| 460437 | 4.8(圆孔) | 0.8-8.4 | 11.1 | 14.3 | 1.7 | 1000 | |
| 468813 | 468837 | 4.8(圆孔) | 0.7-13.0 | 11 | 17.3 | 1.7 | 1000 |
| 463609 | 4.9(方孔) | 2.4-7.4 | 11.2 | 12.5 | 1.1 | 100 | |
| 468814 | 468838 | 5(方孔) | 1.2-6.0 | 16 | 11 | 2 | 1000 |
| 468815 | 468839 | 5(方孔) | 1.7-8.0 | 11 | 12.7 | 1 | 1000 |
| 167206569902 | 167206500002 | 5.6- 6.4(方孔) | 1.5 – 15.0 | 13 | 20 | 1.5 | 100 |
| 167207069902 | 167207000002 | 5.6 – 6.4(方孔) | 1.0 – 27.0 | 13 | 32 | 1.5 | 100 |
| 167209069902 | 167209000002 | 5.9-7.2(方孔) | 2.0 – 19.0 | 14 | 24 | 1.2 | 100 |
| 468816 | 468840 | 6(圆孔) | 2.0-8.0 | 15.5 | 12.7 | 1 | 1000 |
| 468817 | 468841 | 6(方孔) | 2.5-8.0 | 16 | 15 | 2 | 1000 |
| 468819 | 468843 | 6(方孔) | 3.5-19.0 | 12.7 | 24 | 1.5 | 1000 |
| 468820 | 468844 | 6.0-6.3(圆孔) | 2.3-8.9 | 17.8 | 15.5 | 2.4 | 1000 |
| 468821 | 468845 | 6.0-6.3(圆孔) | 2.5-12.0 | 17.8 | 20.4 | 2.5 | 1000 |
| 460439 | 6.35(圆孔) | 2.7-7.6 | 17.8 | 11.1 | 2.5 | 1000 | |
| 460440 | 6.35(圆孔) | 3.8-13.5 | 17.8 | 18.9 | 2.7 | 1000 | |
| 468824 | 468848 | 6.4(圆孔) | 2.7-7.3 | 19.1 | 15.9 | 0.8 | 1000 |
| 6.4 —- | 10.7-28.8 | 17.8 | 35.1 | 2.5 | 1000 | ||
| 468826 | 468850 | 7(圆孔) | 2.0-25.0 | 30 | 34.8 | 2.2 | 1000 |
| – | 7 —- | 0.7-20.0 | 18 | 27.3 | 2 | 1000 | |
| 468828 | 468852 | 7.0-7.2(方孔) | 2.4-11.9 | 15.9 | 18.9 | 1 | 1000 |
| 460441 | 1 | 7.8(圆孔) | 2.4-12.7 | 15.9 | 22.6 | 2.8 | 1000 |
| 495230 | 495232 | 7.2(圆孔) | 1.5 – 14.0 | 19 | 21.2 | 2.4 | 1000 |
| 495231 | 495233 | 7.2(圆孔) | 1.5 – 25.4 | 19 | 30.5 | 2 | 1000 |
| 468799 | 1 | 7.5(方孔) | 2.7-17.0 | 19 | 21 | 2 | 1000 |
| 468829 | 468853 | 8(方孔) | 3.3-12.7 | 12.7 | 16.8 | 1.5 | 1000 |
| 468830 | 8.7(圆孔) | 1.4-13.0 | 16 | 19.1 | 2.3 | 1000 | |
| 468831 | 468855 | 10(圆孔) | 1.5-20.0 | 21.8 | 28.2 | 3.5 | 1000 |
